Hyundai i30 (PD) 2018-2024 Owner's Manual / Driving your vehicle / Intelligent speed limit warning (ISLW) system / Display

Display in cluster

Hyundai i30. Display

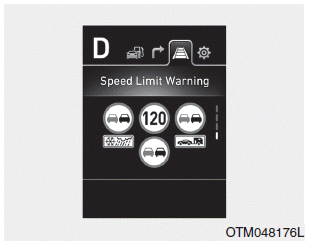

The cluster displays the speed limit information, overtaking restriction, detailed conditional speed limit and detailed overtaking restrictions.

Hyundai i30. Display

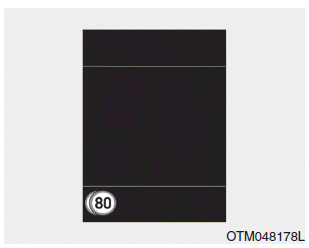

The cluster displays the speed limit information, overtaking restriction and conditional road sign.

Hyundai i30. Display

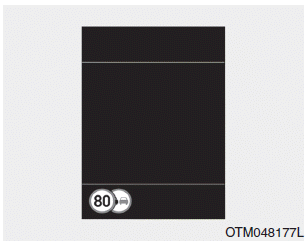

If the ISLW detects the conditional road sign, the symbol of road sign is overlapped at the bottom or left of the speed limit on the cluster.

There may be signs with different speed limits on the same road. For example, normally, the speed limit is 75 mph (120 km/h), however the speed limit is 55 mph (90 km/h) when it is raining or snowing.

The conditional road sign means that you observe the speed limit and overtaking prohibition on certain conditions, such as when rain or snow.

Additional road signs

Hyundai i30. Display

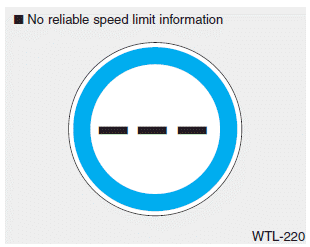

• The symbol is displayed on the instrument cluster and the navigation, when the ISLW does not have any reliable speed limit information.

Hyundai i30. Display

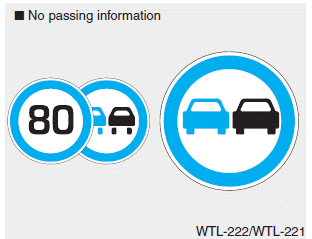

• The symbol is displayed on the instrument cluster and the navigation, when the ISLW detects a noovertaking sign.

Hyundai i30. Display

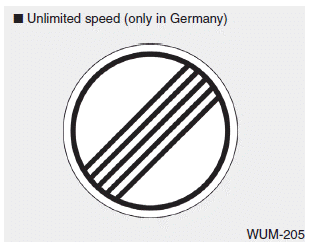

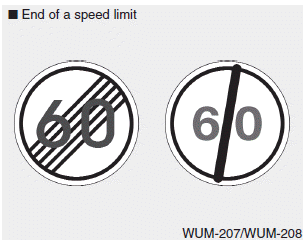

• The symbol, 'end of limitation', is displayed on the instrument cluster for the roads in Germany, which have no speed limit applicable. It is displayed, until the vehicle passes by another speed limit sign.

Hyundai i30. Display

• After the vehicle passes a 'end of speed limit' sign, the ISLW system informs the driver of the next applicable speed limit based on the information received from the navigation.

Warning message

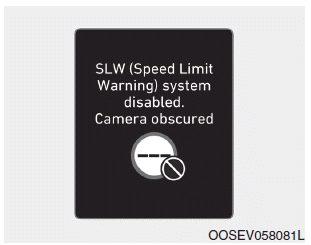

SLW (Speed Limit Warning) system disabled. Camera obscured

Hyundai i30. Display

The warning message appears, when the camera lens is blocked by some objects. The ISLW (Intelligent Speed Limit Warning) does not operate, until the objects are removed. Check the windscreen glass around the camera area. If the problem persists after removing the objects, we recommend that you have the system checked by a HYUNDAI authorised repairer.

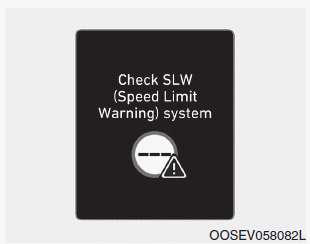

Check SLW (Speed Limit Warning) system

Hyundai i30. Display

The warning message appears for a few seconds, when the ISLW does not properly operate. Then, the master warning light (Hyundai i30. Display) will illuminate.

We recommend that you have the system checked by a HYUNDAI authorised repairer.

The ISLW may not operate properly or may not provide correct information in the following situations.

When the traffic sign condition is poor

  • The traffic sign is located on a sharp curve.
  • The traffic sign is improperly positioned (i.e. turned over, blocked by an object, and damaged).
  • Another vehicle blocks the traffic sign.
  • The LED light of the traffic sign is broken.
  • There is bright light around the traffic sign.
  • If road signs do not correspond to the standard and etc.

When external condition is intervened

  • Your vehicle drives right after another vehicle.
  • The bus or truck, on which the speed sticker is attached, passes by your vehicle.
  • Your vehicle drives in an area, which is uncovered by the navigation system.
  • There is a malfunction with the navigation
  • Your navigation has not been updated.
  • If the top speed limitations stored in the navigation system are incorrect.
  • As a result of incorrect detection by the camera.
  • When calibrating the camera immediately after vehicle delivery and etc.
  • There is something wrong with GPS.

When front visibility is poor

  • The weather is bad, such as raining, snowing, and fogging.
  • There is dirt, ice or frost on the front windscreen, where the camera is installed.
  • The camera lens is blocked by an object, such as sticker, paper, or fallen leaf and etc..
