Hyundai i-30: Interior Trim / Door Step Trim

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Interior Trim / Door Step Trim

Components and components location

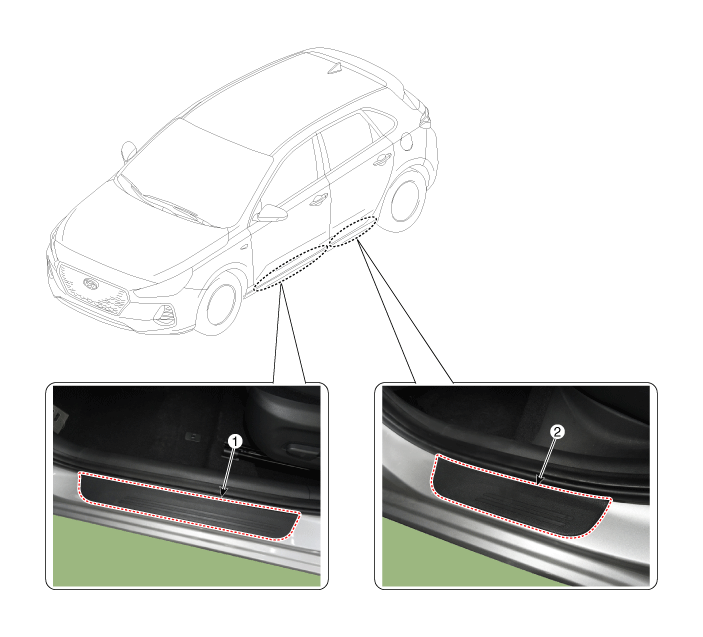

Component

1. Front door step trim

2. Rear door step trim

Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Take care not to bend or scratch the trim and panels.

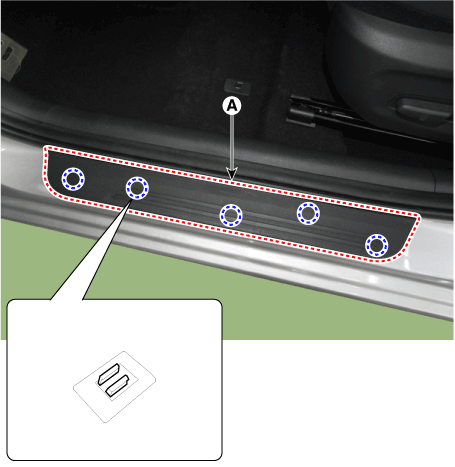

1.	Using a screwdriver or remover, remove the front door step trim (A). [Front]

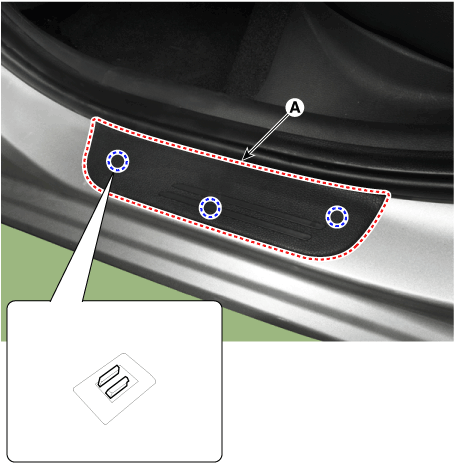

2.	Using a screwdriver or remover, remove the rear door step trim (A). [Rear]

To install, reverse removal procedure.

•	Replace any damaged clips (or retainers or fasteners).
