Speedometer

Hyundai i30. Gauges and meters

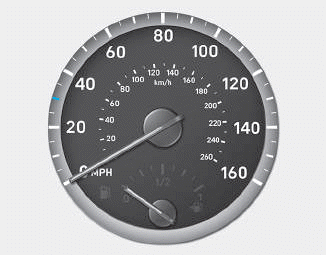

The speedometer indicates the speed of the vehicle and is calibrated in kilometers per hour (km/h) and/or miles per hour (MPH).

Tachometer

Hyundai i30. Gauges and meters

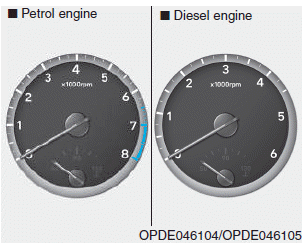

The tachometer indicates the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

NOTICE

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.

Engine coolant temperature gauge

Hyundai i30. Gauges and meters

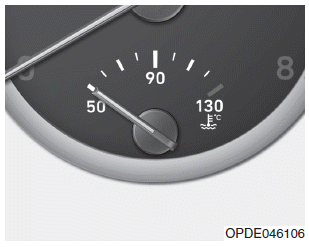

This gauge indicates the temperature of the engine coolant when the ignition switch is in the ON position.

NOTICE

If the gauge pointer moves beyond the normal range area toward the "130" position, it indicates overheating that may damage the engine.

Do not continue driving with an overheated engine. If your vehicle overheats, refer to "If the Engine Overheats" in chapter 6.

WARNING

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could cause severe burns. Wait until the engine is cool before adding coolant to the reservoir.

Fuel gauge

Hyundai i30. Gauges and meters

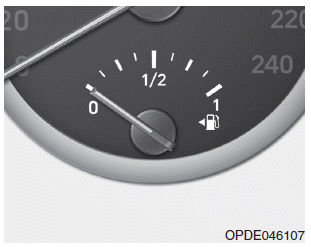

Information

  • The fuel tank capacity is given in chapter 8.
  • The fuel gauge is supplemented by a low fuel warning light, which will illuminate when the fuel tank is nearly empty.
  • On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel warning light may come on earlier than usual due to the movement of fuel in the tank.

WARNING

Running out of fuel can expose vehicle occupants to danger.

You must stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the "0" level.

NOTICE

Avoid driving with an extremely low fuel level. Running out of fuel could cause the engine to misfire damaging the catalytic converter.

Outside temperature gauge

Hyundai i30. Gauges and meters

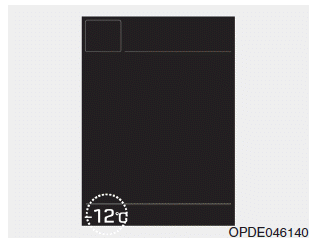

This gauge indicates the current outside air temperatures either in Celsius (°C) or Fahrenheit.

- Temperature range : -40°C ~ 60°C (-104°F ~ 140°F)

The outside temperature on the display may not immediately change like a general thermometer not to distract the driver.

The temperature unit (from °C to °F or from °F to °C) can be changed by:

- User Settings mode in the Cluster : You can change the temperature unit in the “Other Features - Temperature unit” .
- Automatic climate control system : Whilst pressing the OFF button, press the AUTO button for 3 seconds or more.

The temperature unit of the instrument cluster and climate control system will change at once.

Odometer

Hyundai i30. Gauges and meters

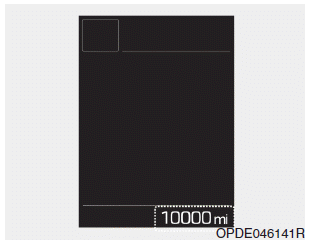

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

Distance to empty

Hyundai i30. Gauges and meters

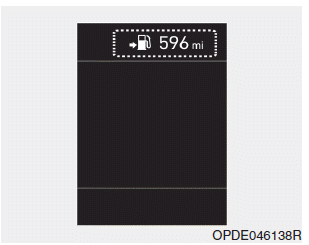

  • The distance to empty is the estimated distance the vehicle can be driven with the remaining fuel.
  • If the estimated distance is below 1 mi. (1 km), the trip computer will display “---” as distance to empty.

Information

  • If the vehicle is not on level ground or the battery power has been interrupted, the distance to empty function may not operate correctly.
  • The distance to empty may differ from the actual driving distance as it is an estimate of the available driving distance.
  • The trip computer may not register additional fuel if less than 6 litres (1.3 lmp. gal.) of fuel are added to the vehicle.
  • The distance to empty may vary significantly based on driving conditions, driving habits, and condition of the vehicle.

    Instrument cluster control

    Instrument panel illumination When the vehicle's position lights or headlamps are on, press the illumination control button to adjust the brightness of the instrument panel illumination...

    Transmission shift indicator

    Manual transmission shift indicator This indicator informs which gear is recommended whilst driving, to save fuel. Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6 Shifting down :▼1, ▼2, ▼3, ▼4, ▼5 For example : Indicates that shifting up to the 3rd gear is recommended (currently the shift lever is in the 2nd or 1st gear)...
