Schematic diagrams
Components

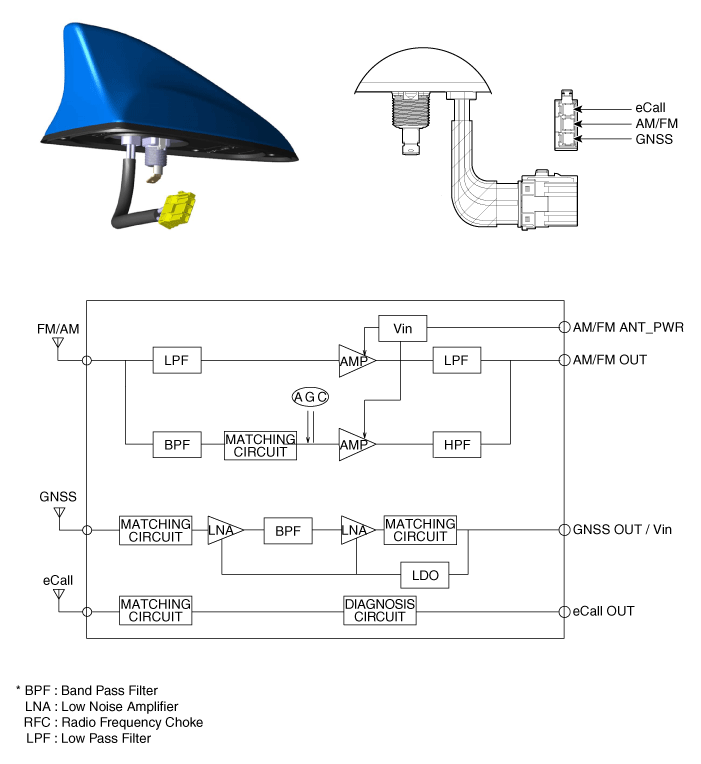

Russia

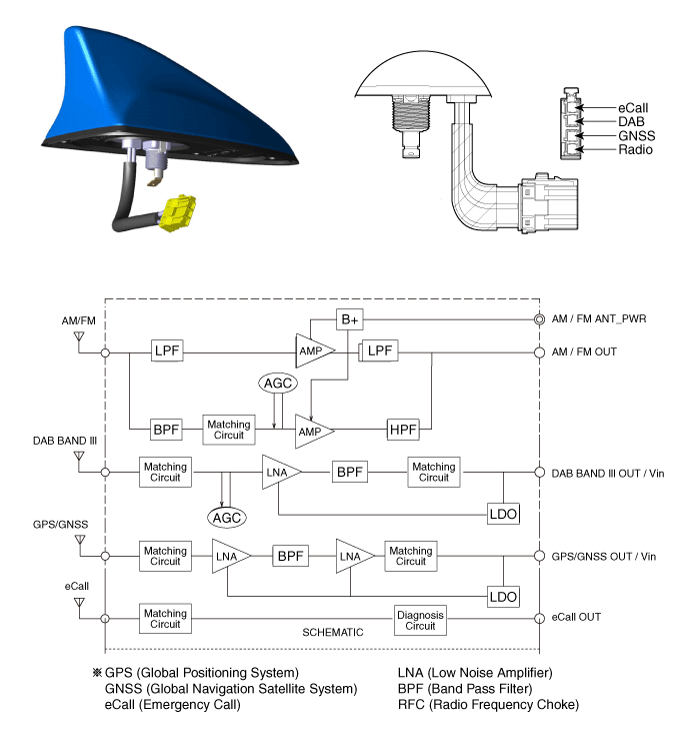

Europe

Repair procedures
Removal
Roof Antenna
1.
Disconnect the negative (-) battery terminal.
2.
Remove the roof trim assembly.
(Refer to Body - "Roof Trim Assembly")
3.

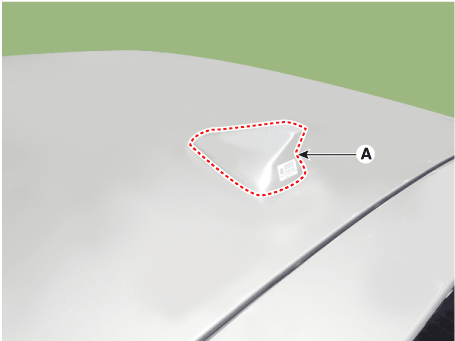

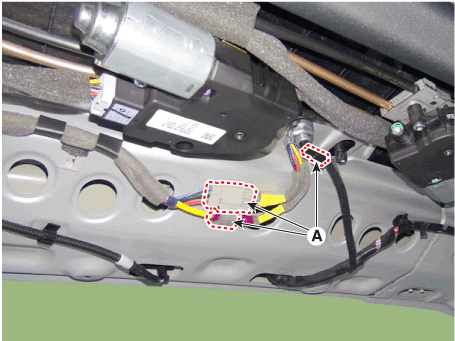

Disconnect the roof antenna cable and connectors (A).

4.

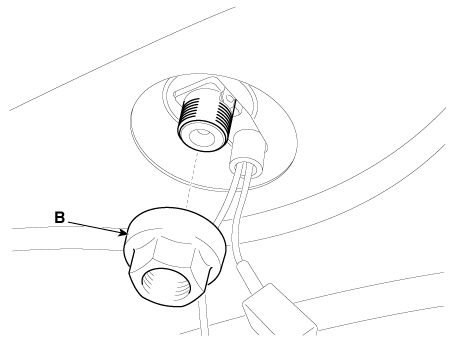

Remove the roof antenna (A) after loosening a nut (B).

eCall Antenna
1.
Disconnect the negative (-) battery terminal.
2.
Remove the main crash pad assembly.
(Reafer to Body - "Main Crash Pad Assembly")
3.

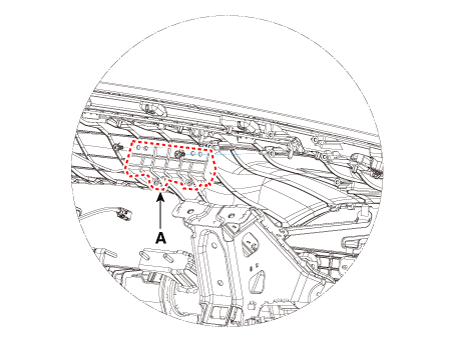

Remove the ecall antenna (A) after loosening the mounting screws.

Installation

Make sure that the cables and connectors are plugged in properly.
Check the eCall system for normal operation.
Roof Anenna
1.
Connect the roof antenna connectors.
2.
Install the roof trim assembly.
eCall Antenna
1.
Install the eCall antenna.
2.
Install the main crash pad assembly.
3.
Connect the negative (-) battery terminal.

    Emergency Call (eCall) Button
