Hyundai i-30: Cylinder Block / Water Jacket Seperator

Hyundai i30 (PD) 2018-2025 Service Manual / Engine Mechanical System / Cylinder Block / Water Jacket Seperator

Repair procedures
Removal and Installation
1.
Remove the cylinder head assembly.
(Refer to Cylinder Head Assembly - "Cylinder Head")
2.

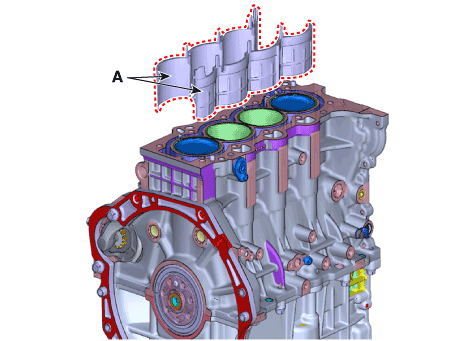

Remove the water jacket separator (A).


Be careful not to damage it when removing.
3.
Install in the reverse order of removal.
