Hyundai i-30: Heater / Evaporator Core

Hyundai i30 (PD) 2018-2025 Service Manual / Heating, Ventilation and Air Conditioning / Heater / Evaporator Core

Repair procedures
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the heater and blower assembly.
(Refer to Heater - "Heater Unit")
3.

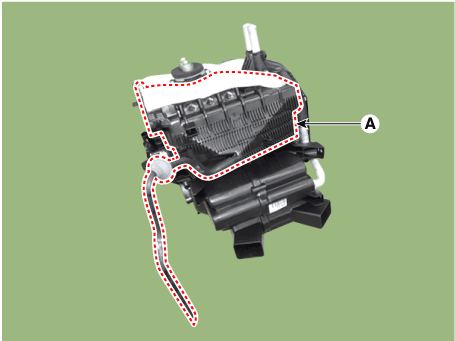

Remove the evaporator core cover (A) after loosening the mounting screws.
4.

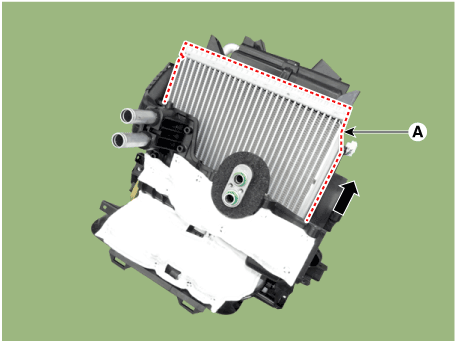

Pull out the evaporator core cover (A) from the heater unit.
5.

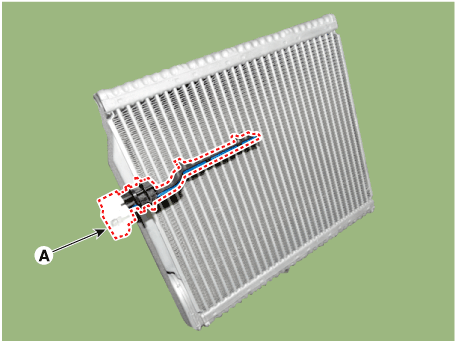

Remove the evaporator temperature sensor (A) from the evaporator core.
6.
To install, reverse the removal procedure.

•
If you're installing a new evaporator core, add refrigerant oil (PAG OIL).
•
Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a, R-1234yf to avoid leakage.
•
Immediately after using the oil, replace the cap on the container, and seal it to avoid moisture absorption.
•
Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
•
Apply sealant to the grommets.
•
Make sure that there is no air leakage.
•
Charge the system and test its performance.
