Components and components location

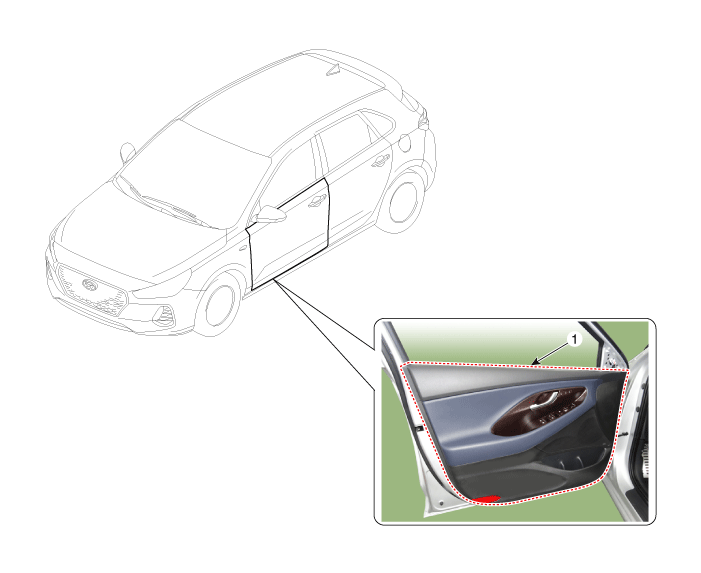

Component Location

1. Front door trim

Repair procedures
Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.

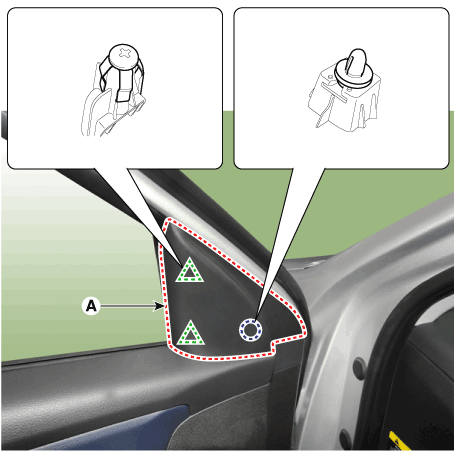

Using a screwdriver or remover, remove the front door quadrant inner cover (A).
2.

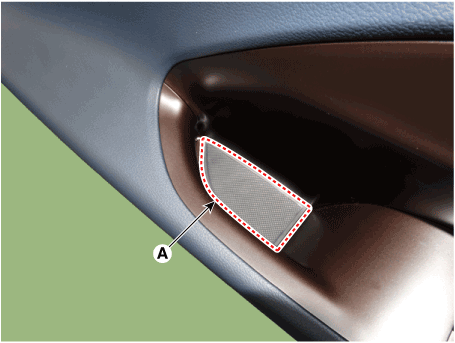

Using a flat-tip or remover, remove the front door pull handle cap (A).
3.

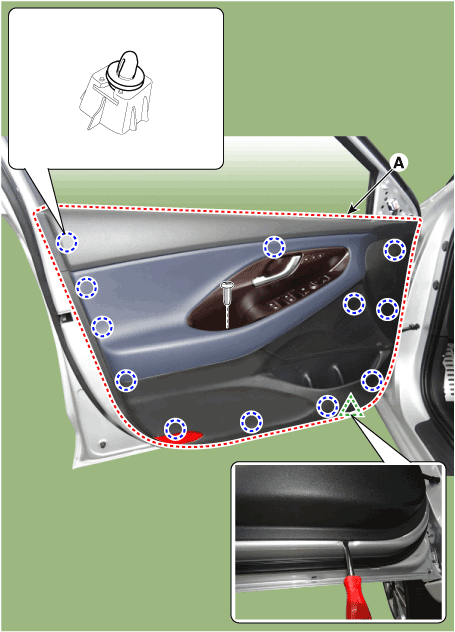

After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat-tip screwdriver.
4.
Remove the front door inside handle cage (A).
5.

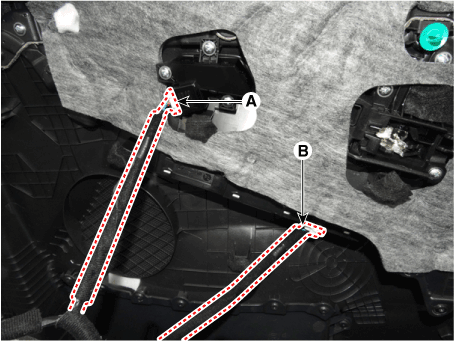

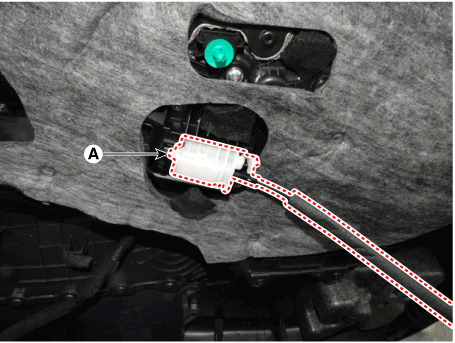

Disconnect the front door lamp connector (A), and window switch connector (B).
6.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
•
Make sure the glass is operated properly.
