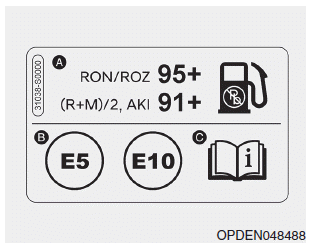

Petrol engine

The fuel label is attached on the fuel filler door.

Hyundai i30. Fuel label

A. Octane rating of unleaded petrol

1) RON/ROZ : Research Octane Number

2) (R+M)/2, AKI : Anti Knock Index

B. Identifiers for Petrol-type fuels

❈ This symbol means usable fuel. Do not use any other fuel.

C. For further details, refer to the “Fuel Requirement” in the Introduction chapter.

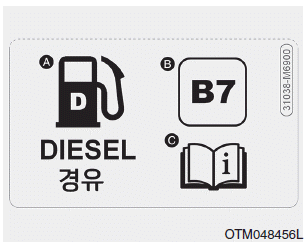

Diesel engine

The fuel label is attached on the fuel filler door.

Hyundai i30. Fuel label

A. Fuel : Diesel

B. Identifiers for FAME containing Diesel-type Fuels

❈ This symbol means usable fuel. Do not use any other fuel.

C. For further details, refer to the “Fuel Requirement” in the Introduction chapter.
