Hyundai i-30: Automatic transmission / Shift-lock system. Shift-lock release
Shift-lock system
For your safety, the automatic transmission
has a shift-lock system
which prevents shifting the transmission
from P (Park) into R (Reverse)
unless the brake pedal is depressed.
To shift the transmission from P
(Park) into R (Reverse):
1. Depress and hold the brake pedal.
2. Start the engine or place the ignition
switch in the ON position.
3. Move the shift lever.
Shift-lock release
If the shift lever cannot be moved
from the P (Park) position into R
(Reverse) position with the brake
pedal depressed, continue depressing
the brake, and then do the following:
![Hyundai i30. Shift-lock system. Shift-lock release](images/shift_lock_system_shift_lock_release-209/1/hyundai_i30_shift_lock_system_shift_lock_release_451.png)
1. Place the ignition switch in the
LOCK/OFF position.
2. Apply the parking brake.

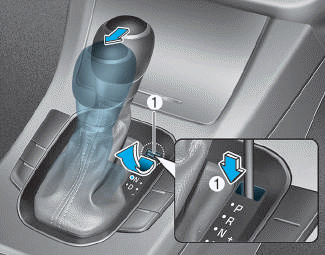

3. Carefully remove the cap (1) covering
the shift-lock access hole.
4. Insert a tool (e.g. flathead screwdriver)
into the access hole and
press down on the tool.
5. Move the shift lever whilst holding
down the screwdriver.
6. Remove the tool from the shiftlock
release access hole then install
the cap.
7. Depress the brake pedal, and then
restart the engine.
If you need to use the shift-lock
release, we recommend that the system
be inspected by a HYUNDAI
authorised repairer immediately.
Ignition key interlock system
The ignition key cannot be removed
unless the shift lever is in the P
(Park) position.
The indicator in the instrument cluster
displays the shift lever position
when the ignition switch is in the ON
position.
P (Park)
Always come to a complete stop
before shifting into P (Park)...
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position, apply the parking brake,
and place the ignition switch in the
LOCK/OFF position...
