Hyundai i-30: Smart key / Locking
![Hyundai i30. Locking](images/locking-63/1/hyundai_i30_locking_112.png)
To lock :
1. Close all doors, engine bonnet
and tailgate.

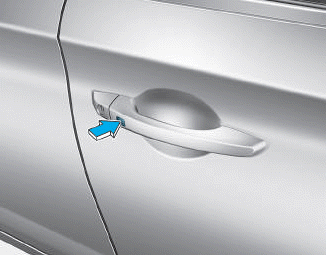

2. Either press the door handle button
or press the Door Lock button
(1) on the smart key.
3. The hazard warning lights will
blink. Also, the outside rearview
mirror will fold, if the outside
rearview mirror folding switch is in
the AUTO position (if equipped).
4. When the doors are locked, the
indicator light on the central door
lock/unlock switch will be illuminated.
Information
The door handle button will only
operate when the smart key is within
0.7~1 m (28~40 in.) from the outside
door handle.
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for
three seconds if any of the following
occur:
- The Smart Key is in the vehicle.
- The Engine Start/Stop button is in
ACC or ON position.
- Any door except the tailgate is
open.
WARNING
Do not leave the Smart Key in
your vehicle with unsupervised
children. Unattended children
could press the Engine Start/
Stop button and may operate
power windows or other controls,
or even make the vehicle
move, which could result in
serious injury or death.
Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock
a door (and tailgate) and even start
the engine.
1. Door Lock
2. Door Unlock
3...
To unlock:
1. Carry the Smart Key.
2. Either press the door handle button
or press the Door Unlock button
(2) on the smart key.
3. The doors will unlock...
