Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly")
|
| 3. |

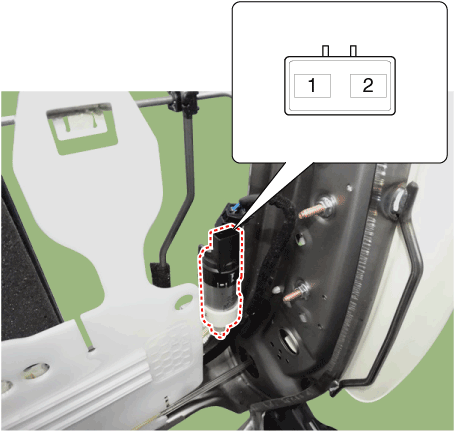

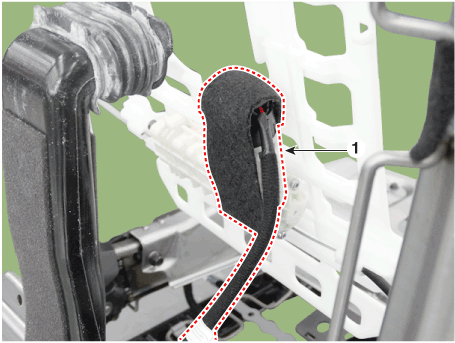

Disconnect the lumber support motor connector (A).
|
| 4. |

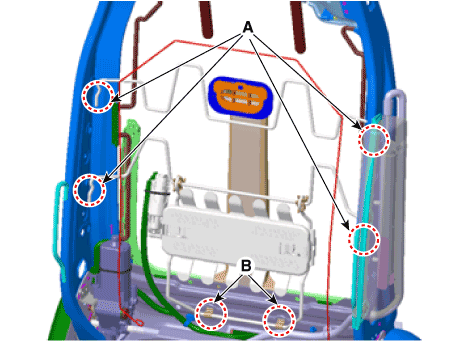

Separate the retaining clips (A) from the seat frame.
|
| 5. |
Remove the lumber support assembly after mounting fasner (B).
|
| Installation |
| 1. |
Install the lumber support assembly.
|
| 2. |
Install the seat back cover.
|
| 3. |
Install the front seat assembly.
|
| Inspection |
Lumbar Support Motor
| 1. |
Disconnect the connectors for motor.
|
| 2. |

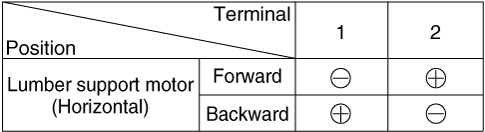

When the battery power is supplied to the motor connector, check the
motor for smooth operation.
|
| 3. |
Reverse the connections and check that the motor turns in reverse.
|
| 4. |
If the motor runs abnormally, replace it.
|
Air Ventilation Seat
Components and components location
Component Location
1. Ventilation
seat blower.
2. Ventilation
seat unit (Assist seat only)...
