Hyundai i-30: Parking Brake System / Parking Brake Switch

Hyundai i30 (PD) 2018-2024 Service Manual / Brake System / Parking Brake System / Parking Brake Switch

Repair procedures

Removal

1.	Disconnect the negative (-) battery cable.

2.	Release the parking brake.

3.	Remove the floor console assembly. (Refer to Body - "Floor Console")

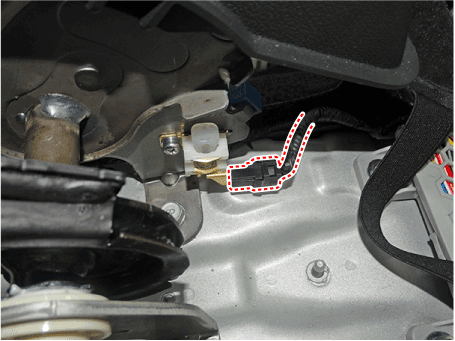

4.	Disconnect the connector of parking brake switch.

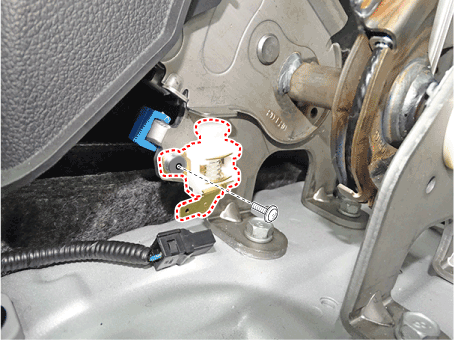

5.	Loosen the screw and then remove the parking brake switch.

6.	To install, reverse the removal procedure.
