Hyundai i-30: SRSCM / Passenger Airbag (PAB) ON/OFF Switch

Hyundai i30 (PD) 2018-2024 Service Manual / Restraint / SRSCM / Passenger Airbag (PAB) ON/OFF Switch

Description and operation
Description
Driver can control the passenger airbag operating Condition (Enable or Disable) by using this PAB ON/OFF switch.
Passenger Airbag (PAB) ON/OFF Switch is installed in the crash pad side cover.
Repair procedures
Removal
1.

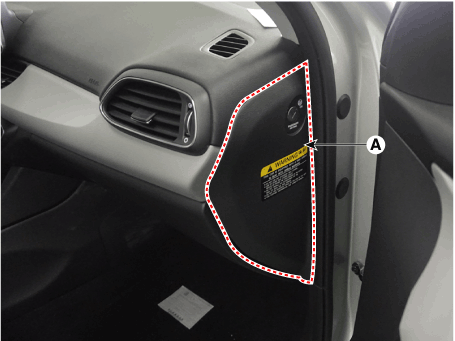

Remove the crash pad side cover (A).

2.

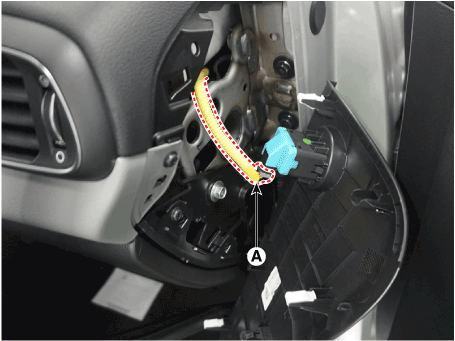

Disconnect the PAB ON/OFF connector (A).

3.

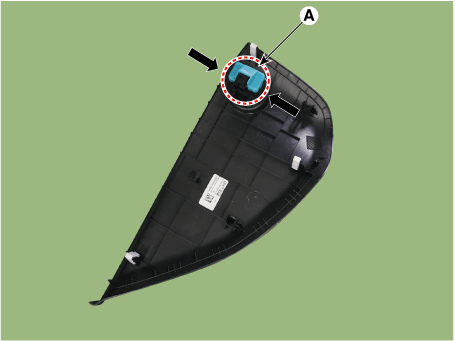

Remove the PAB ON/OFF switch (A) by pressing the both side of hooks.

Installation
1.
Install in the reverse order of the removal.
