Hyundai i-30: Rear Suspension System / Rear Upper Arm

Hyundai i30 (PD) 2018-2023 Service Manual / Suspension System (NON-ECS) / Rear Suspension System / Rear Upper Arm

Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securelysupported.
2.

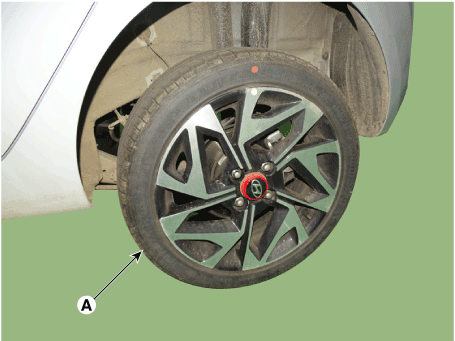

Remove the rear wheel and tire (A) from the rearhub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)


•
Be careful not to damage the hub bolts whenremoving the rear wheel and tire (A).
3.

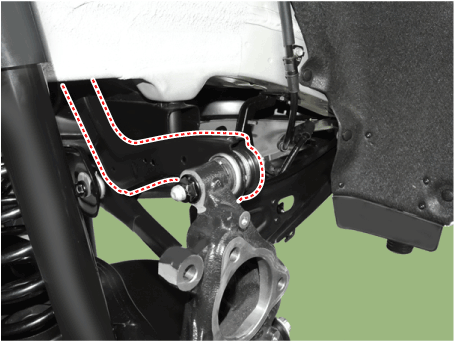

Loosen the rear upper arm mounting bolt and thenremove the rear upper arm.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)


•
Set up the transmission jack under the lower armin order to remove the upper arm in no-loadcondition
4.

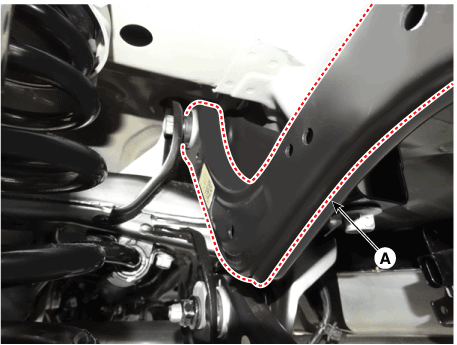

Loosen the bolt & nut then remove the rear upperarm (A) with the sub frame.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

5.
Installation in the reverse of removal.
Inspection
1.
Check the bushing for wear and deterioration.
2.
Check for all bolts and nut.
