Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Rear Wiper/Washer / Rear Washer Switch

Repair procedures
Inspection
Multifunction Switch Inspection
1.

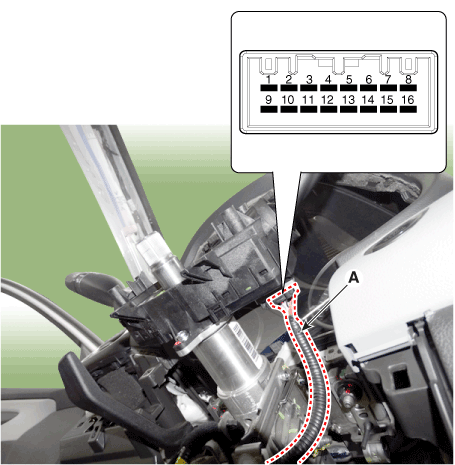

Check for continuity between the terminals in each switch position as shown below.

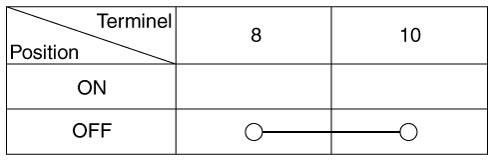

[Rear Wiper Switch]

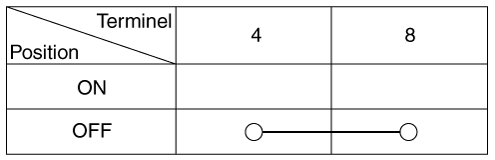

[Rear Washer Switch]

Inspection (With GDS)
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS).
The diagnostic system(GDS) provides the following information.
(1)
Self diagnosis : Checking failure and code number (DTC)
(2)
Current data : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
Additional function : Controlling other features including system option setting and zero point adjustment
2.
Select the 'Car model' and the 'Body Control Module (BCM)' to be checked in order to check the vehicle with the tester.
3.

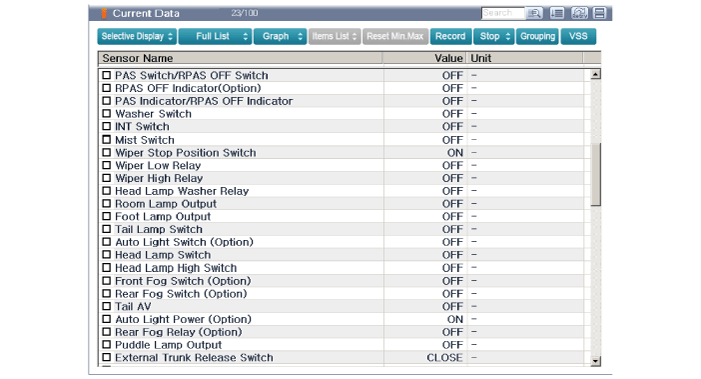

Select the 'Current Data' menu to search the current state of the input/output data.

    Rear Wiper Motor

    Repair procedures Inspection Rear Wiper Motor 1. Remove the connector from the rear wiper motor. 2...

    Rear Washer Motor

    Repair procedures Inspection 1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water...
