Removal

In case of bad quality or poor focus, be sure to check the camera lense surface condition and foreign materials.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
(Refer to Body - "Tail Gate Trim")
3.

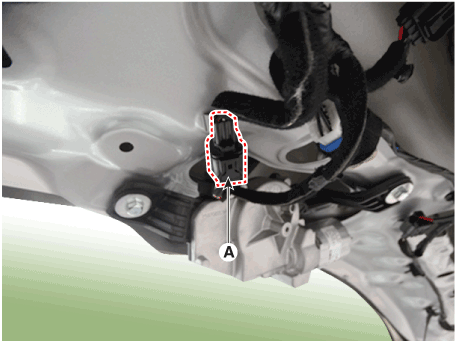

Disconnect the rear view camera connector (A).

4.

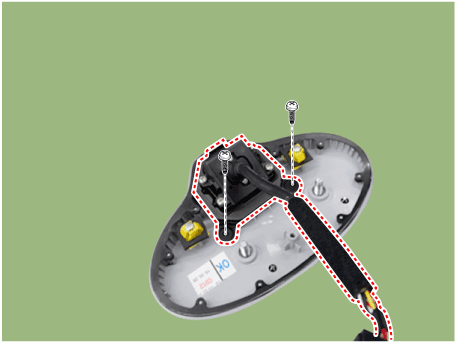

Remove the rear view camera assembly after loosening the mounting screws.

Installation
1.

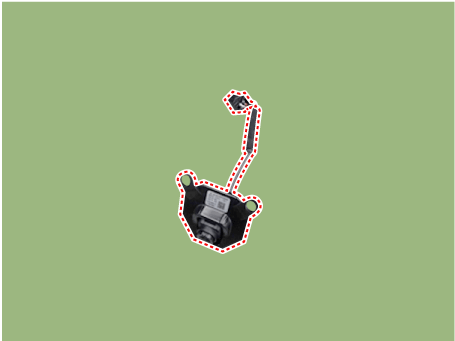

Install the back view camera.
2.
Install the tailgate back panel.
3.
Install the tailgate lid trim.
4.
Connect the negative (-) battery terminal.

    Description and operation

    Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position...
