Hyundai i-30: Rear Axle Assembly. Rear Hub - Carrier / Repair procedures

Hyundai i30 (PD) 2018-2025 Service Manual / Driveshaft and axle / Rear Axle Assembly. Rear Hub - Carrier / Repair procedures

Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

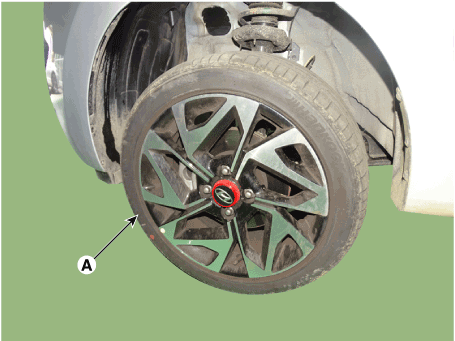

Remove the rear wheel and tire (A) from the rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

3.
Remove the rear brake caliper.
(Refer to Brake System - "Rear Disc Brake")
4.

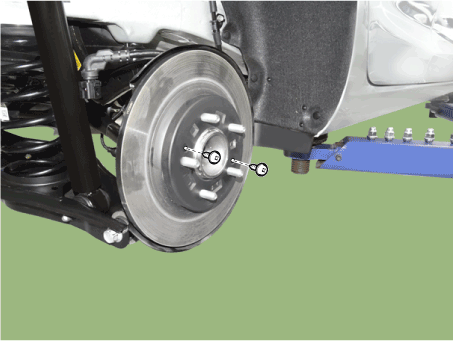

Loosen the screws and then remove the brake disc.
Tightening torque :
4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

5.

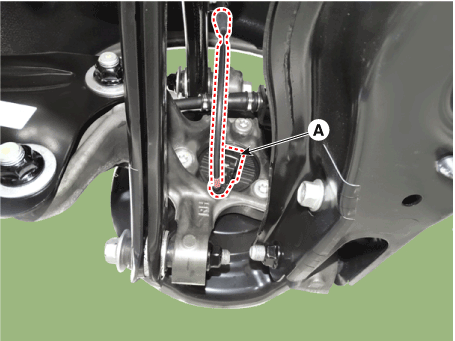

Disconnect the rear wheel speed sensor connector (A).
6.

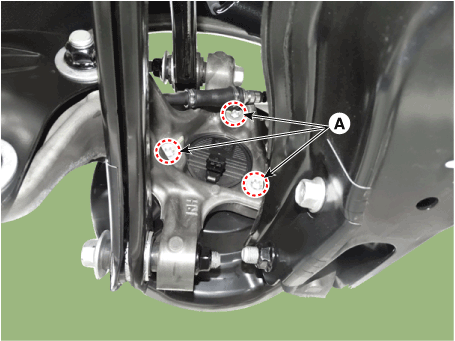

Loosen the bolts (A) and then remove the hub bearing.
Tightening torque :
88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb-ft)

7.

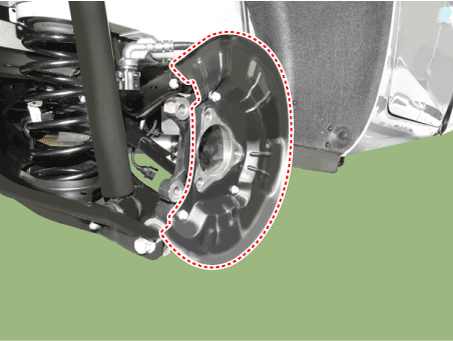

Remove the dust cover after loosening the bolts.
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

8.

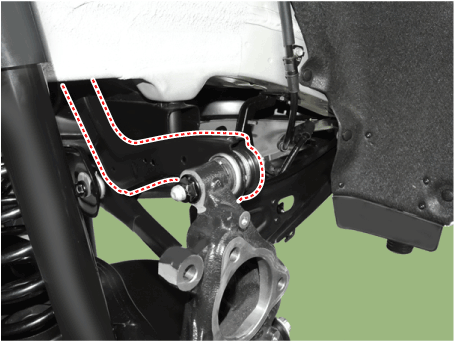

Loosen the rear upper arm mounting bolt and then remove the rear upper arm.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

9.

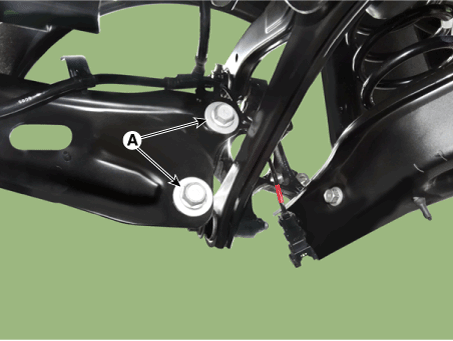

Loosen the trailing arm mounting nuts (A), and then remove the trailing arm.
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

10.

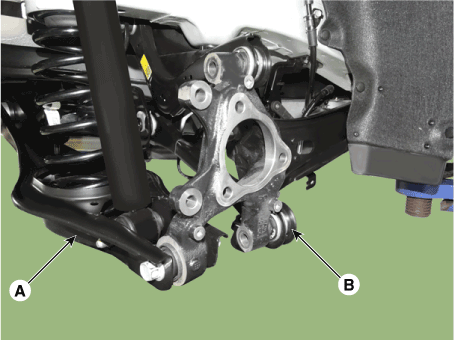

Loosen the bolt and nut and then remove the lower arm (A), assist arm (B).
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

11.
To install, reverse the removal procedure.
12.
Check the wheel Alignment.
(Refer to Tires/Wheels - "Alignment")
Inspection
1.
Check the rear axle carrier for cracks.
2.
Check the bearing for cracks or damage.16
3.
Replace only the sensor cap when the warning light turns on due to a defective sensor cap of the hub bearing.
(Refer to Brake System - "Rear Wheel Speed Sensor")

    Components and components location

    ..

    Suspension System (NON-ECS)

    ..
