Removal
1.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
2.
Turn the steering wheel so that the front wheels are placed in the straight ahead position.
3.
Remove the driver airbag module (DAB).

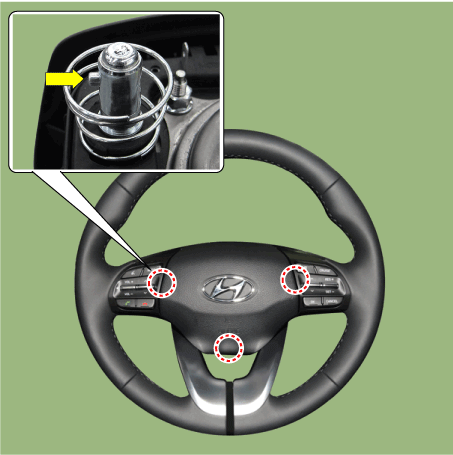

Insert the end of the flat tool along the guide hole.
4.

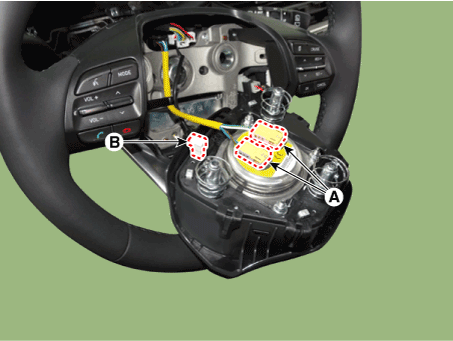

Disconnect the airbag module connector (A) and horn connector (B).

5.

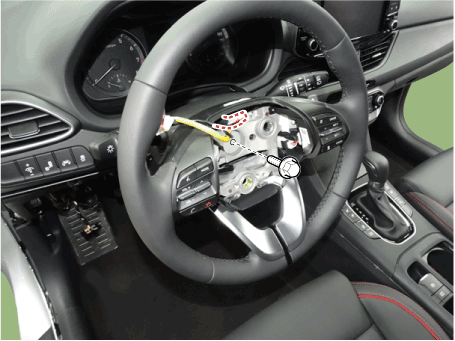

Disconnect the connector and then remove the steering wheel by loosening the lock bolt.
Tightening torque :
44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)


Do not reuse the steering lock bolt.

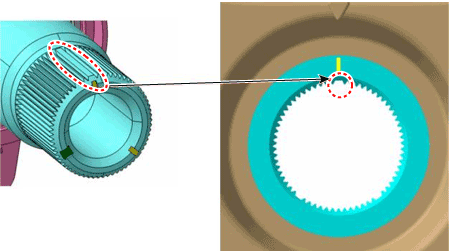

When assembling, match the gear teeth as the below illustration.

6.
To install, reverse the removal procedure.
Disassembly
1.

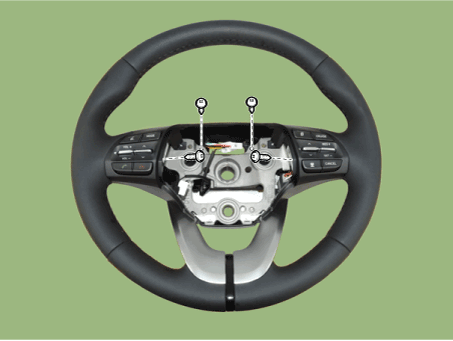

Loosen the screw.

2.

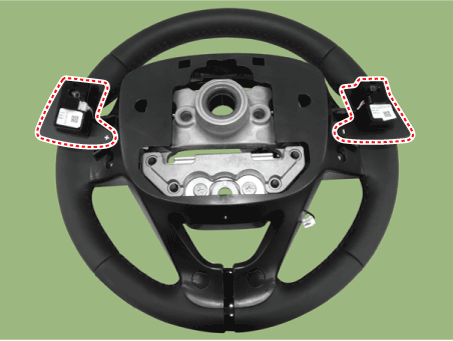

Remove the paddle shift switch.

3.

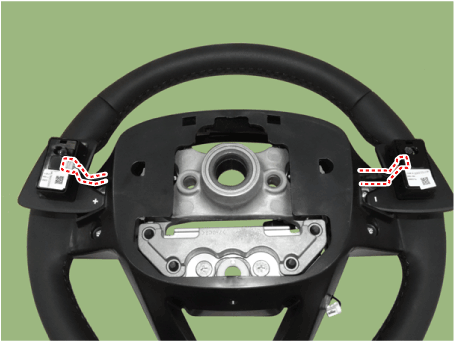

Disconnect the connector and then remove the switch.

4.

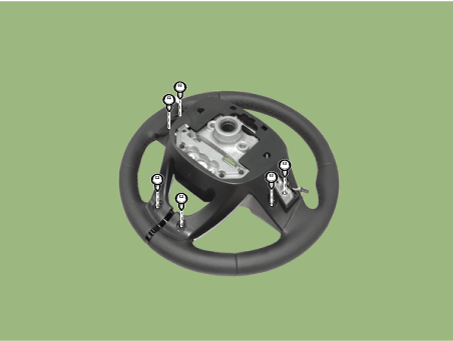

Loosen the screw and then remove the lower cover.

5.

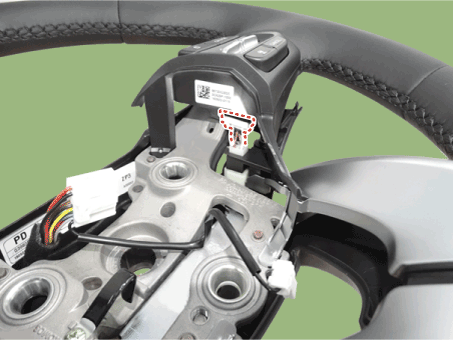

Disconnect the remote control switch connector.

6.

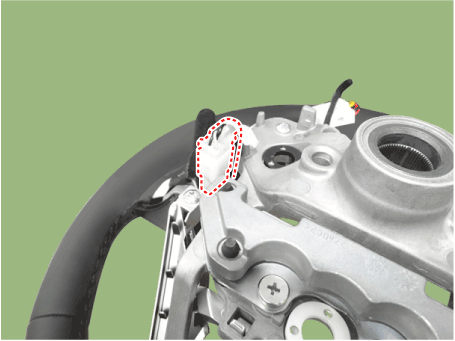

Disconnect the heated steering wheel connector.

7.

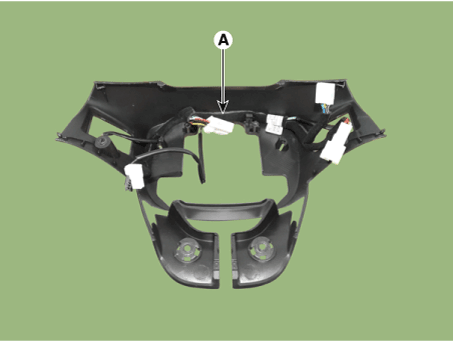

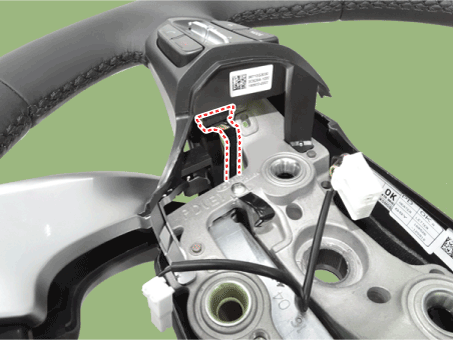

Remove the wiring (A).

8.

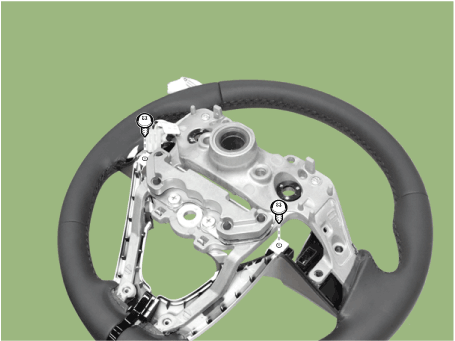

Loosen the screw and then remove the remote control switch.

9.

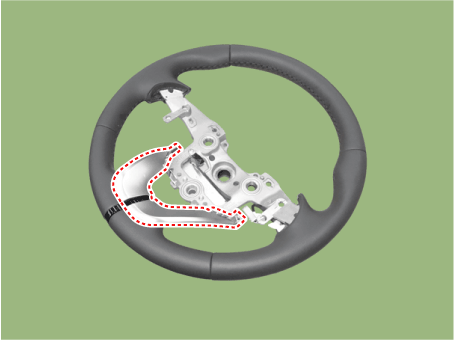

Remove the steering upper cover.

10.
To reassembly, reverse the disassembly procedure.
