Hyundai i-30: Motor Driven Power Steering / Schematic diagrams

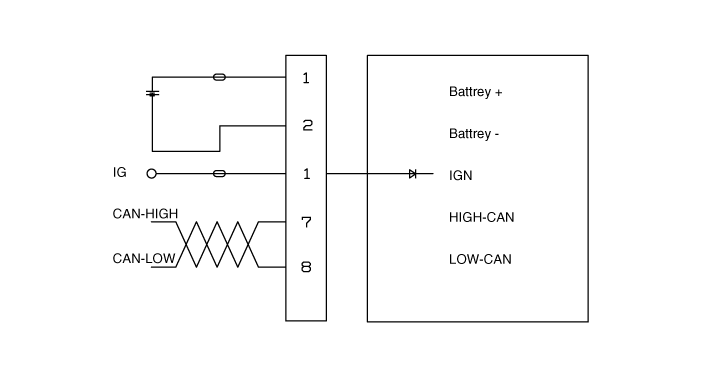

![](images/schematic_diagrams-675/380/smdst1003n.gif)

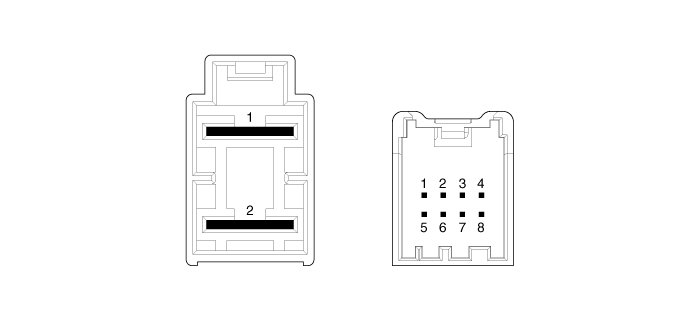

![](images/schematic_diagrams-675/380/smdst1023d.gif)
Type
|
Pin No
|
Description
|
Battery
|
1
|
Battery +
|
2
|
Battery -
|
VSS
|
1
|
IGN
|
2
|
-
|
3
|
-
|
4
|
-
|
5
|
-
|
6
|
-
|
7
|
HIGH CAN
|
8
|
LOW CAN
|
Components Location
LHD
1. Steering wheel
2. Steering column
3. MDPS motor
4. MDPS motor
4. MDPS ECU
5...
A/S Repair produres
MDPS System A/S Workflow
① Noise / malfunction Inspection
② Warning lamp (DTC) / CAN Line error
2 - 1 Checking Connectors and Wiring
1...
Other information:
Components and components location
Components
TFT LCD Cluster (Standard)
TFT LCD Cluster (7Inch)
Connector Pin Information
Connector Pin Information
No.
Description
No.
Description
1
Ground
21
Trip switch (-)
2
Illumination (-)
22
Trip switch 1 (+)
3
Rheostat switch (Down)_Input
23
Trip switch 2 (+)
4
Rheostat switch (Up)_Input
24
M/T N switch
5
Dentent
25
Driver mode switch
6
P
26
-
7
R
27
-
8
N
28
Low washer level sensor
9
D
29
M-CAN (Low)
10
S
30
M-CAN (High)
11
Immobillizer
31
-
12
Vehicle speed_Output
32
C-CAN (High)
13
Alternator_Input
33
C-CAN(Low)
14
Fuel sender (+)_Input
34
-
15
-
35
-
16
Fuel sender (-)_Input
36
-
17
Water separator (+)
37
Ground
18
Airbag (+)_Input
38
-
19
Oil press switch (-)_Input
39
IGN 1
20
Tail_input
40
Battery (+)
Schematic diagrams
Circuit Diagram
TFT LCD Cluster (Standard)
TFT LCD Cluster (7Inch)
Description and operation
Description
Communication Network Diagram
Abbreviation
Expalnation
ECM
Engine Control Module
TCU
Transmission Control Unit
MDPS
Motor Driven Power Steering
AEB
Autonomous Emergency Braking
LKAS
Lane Keeping Assist System
FPS
Fuel Pump Control module
RR CAMERA
Rear View Carmera
VACUUM
Vacuum Pump
CLUSTER
Cluster Module
ACU
Airbag Control Unit
DATC
Dual Automatic Temp Control
MTC
Temp Control
OCS
Occupant Classification System
VDC
Vehicle Dynamic Control
BSD
Blind Spot Detection
AMP
Amplifier
AVN
Head Unit (Audio / AVN)
SMK
Smart Key Unit
WPC
Wireless Power Charger
IMS
Integrated Memory System
DDM
Driver Door Module
ADM
Assist Door Module
BCM
Body Control Module
B-CAN
Body Controller Area Network
P-CAN
Powertrain Controller Area Network
M-CAN
Multi media Controller Area Network
C-CAN
Chassis Controller Area Network
Cluster Variant Coding
As we have more options (ESC, MDPS etc...
Description and operation
Description
The Knee Airbag (KAB) is installed inside the crash pad lower panel and protects
the driver in the event of a frontal crash. The SRSCM determines if and when
to deploy the KAB.
•
Never attempt to measure the circuit resistance of the airbag
module (squib) even if you are using a specified tester...
