Hyundai i-30: Front Radar System / Smart Cruise Control (SCC) Switch

Hyundai i30 (PD) 2018-2024 Service Manual / Advanced Driver Assistance System (ADAS) / Front Radar System / Smart Cruise Control (SCC) Switch

Components and components location

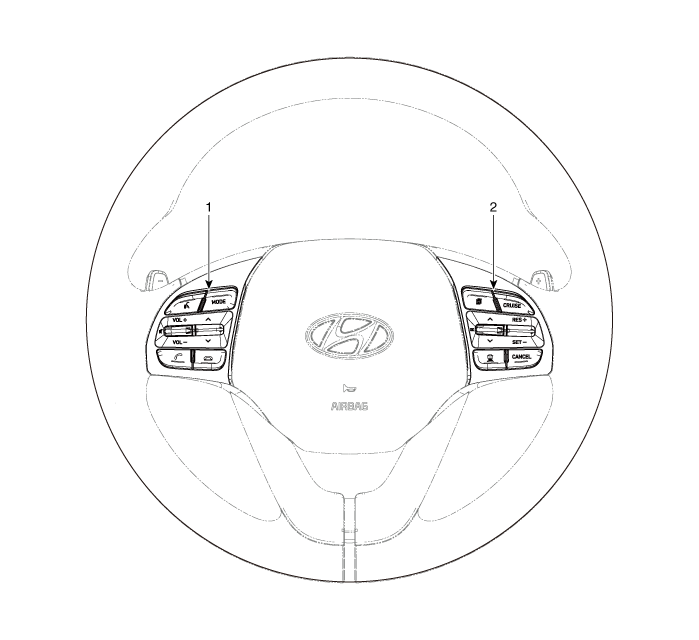

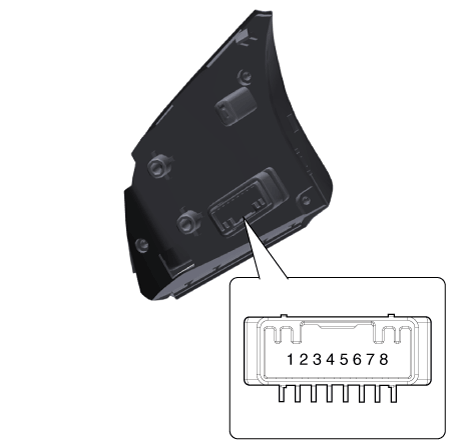

Components

1. Remote control switch (Audio swtich)
2. Remote control switch (Cruise control switch)

Schematic diagrams

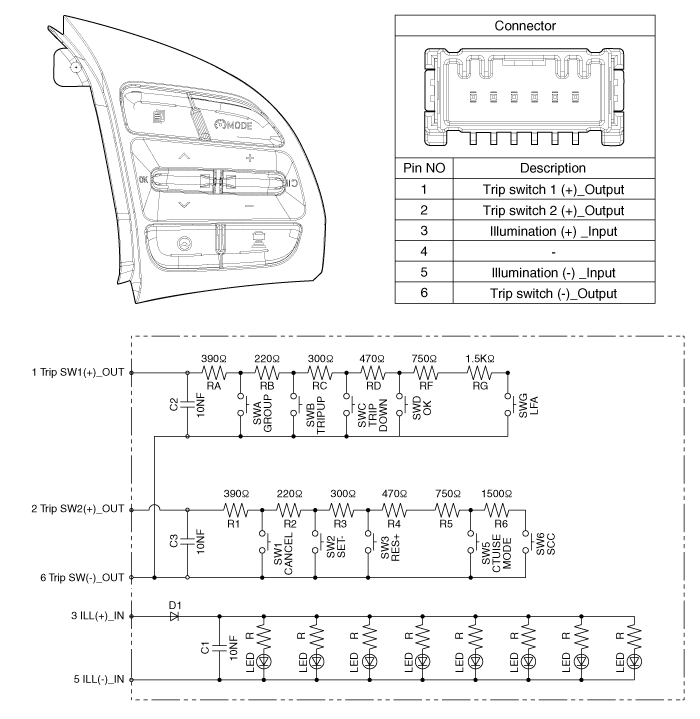

Circuit Diagram
TRIP / SCC / LFA

Repair procedures
Removal

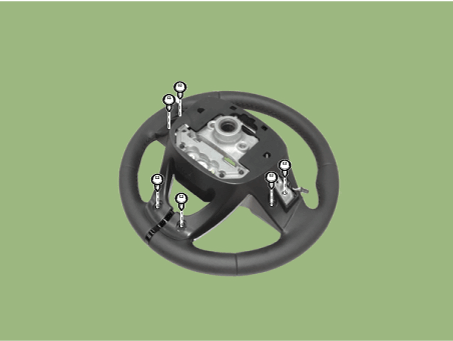

1.
Loosen the screw.

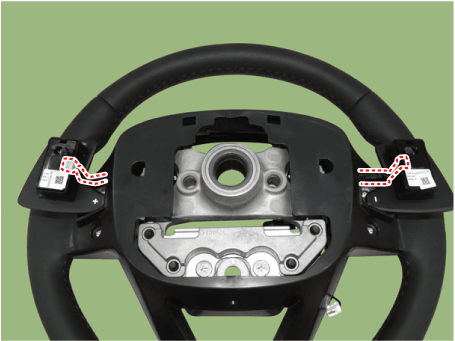

2.

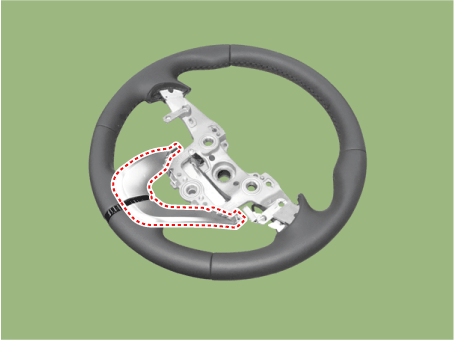

Remove the paddle shift switch.

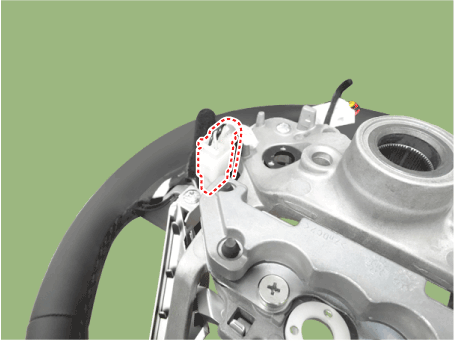

3.

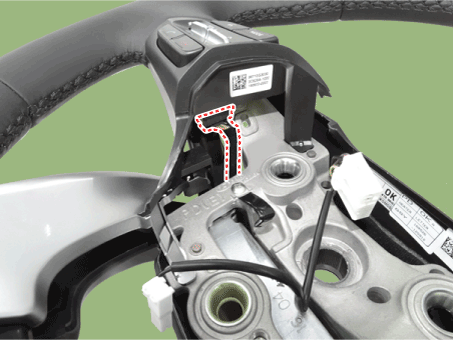

Disconnect the connector and then remove the switch.

4.

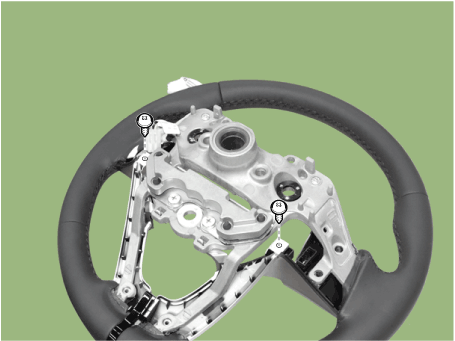

Loosen the screw and then remove the lower cover.

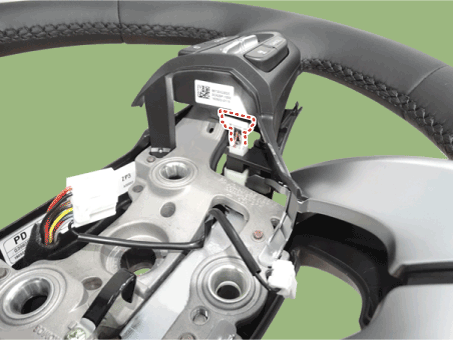

5.
Disconnect the remote control switch connector.

6.
Disconnect the heated steering wheel connector.

7.

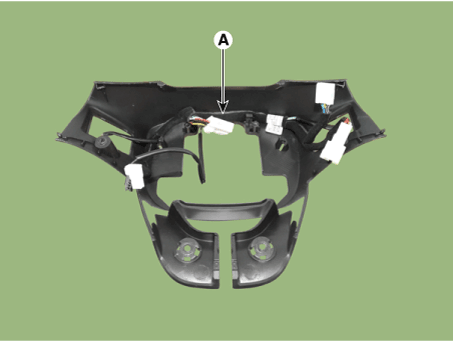

Remove the wiring (A).

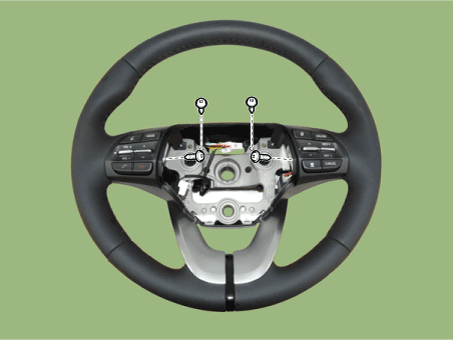

8.

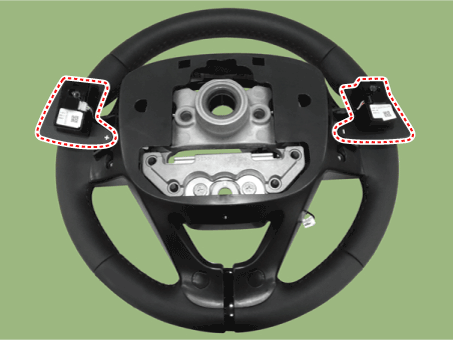

Loosen the screw and then remove the remote control switch.

9.
Remove the steering upper cover.

Installation
1.
Install in the reverse order of removal.
Inspection
[Measuring Resistance]
1.
Remove the cruise control switch.

2.
Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Function switch
Terminal
Terminal
Resistance
(± 5%)
Standard
Option
Paddle Up
-
-
390Ω
Cancel
2 - 6
8 - 6
610Ω
SET (-)
2 - 6
8 - 6
910Ω
SET (+)
2 - 6
8 - 6
1.38 kΩ
Cruise ON / OFF
2 - 6
8 - 6
2.13 kΩ
SCC
2 - 6
8 - 6
7.93 kΩ
Paddle Down
-
-
390Ω
