Hyundai i30. Sunshade

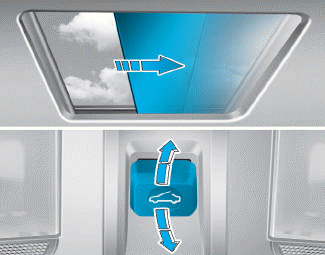

To open the sunshade, pull the sunroof control lever backward (1) to the first detent position.
To close the sunshade when the sunroof glass is closed, push the sunroof control lever forward (2).

To stop the sunroof movement at any point, push the sunroof control lever either forward or backward momentarily.

Information

Activating the control lever to the first detent requires only a very light touch.

Panorama sunroof

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control lever located on the overhead console. The ignition switch must be in the ON position before you can open or close the sunroof...

Sliding the sunroof

When the sunshade is closed If you push the sunroof control lever backward past the first detent, the sunshade will slide all the way open and then the sunroof glass will slide all the way open...
