Manual transmission shift indicator

Hyundai i30. Transmission shift indicator

This indicator informs which gear is recommended whilst driving, to save fuel.

  • Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6
  • Shifting down :▼1, ▼2, ▼3, ▼4, ▼5

For example

Hyundai i30. Transmission shift indicator: Indicates that shifting up to the 3rd gear is recommended (currently the shift lever is in the 2nd or 1st gear).

Hyundai i30. Transmission shift indicator: Indicates that shifting down to the 3rd gear is recommended (currently the shift lever is in the 4th, 5th, or 6th gear).

When the system is not working properly, the indicator is not displayed.

Automatic transmission shift indicator

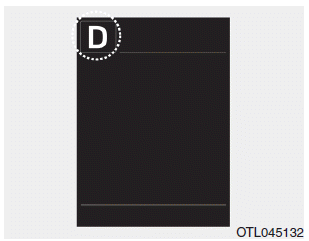

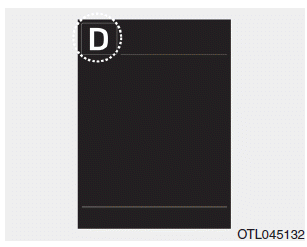

Hyundai i30. Transmission shift indicator

This indicator displays which automatic transmission shift lever position is selected.

  • Park :P
  • Reverse : R
  • Neutral : N
  • Drive :D
  • Manual Shift Mode : 1, 2, 3, 4, 5, 6

Dual clutch transmission shift indicator

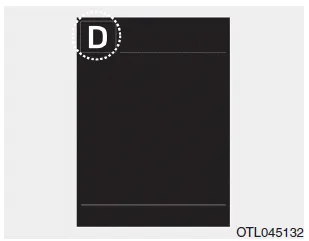

Hyundai i30. Transmission shift indicator

This indicator displays which shift lever position is selected.

  • Park :P
  • Reverse : R
  • Neutral : N
  • Drive :D
  • Manual Shift Mode : D1, D2, D3, D4, D5, D6, D7

Shift Indicator Pop-up

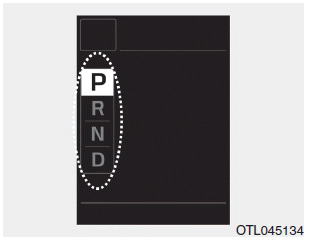

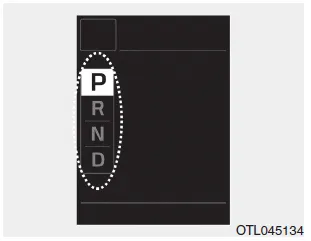

Hyundai i30. Transmission shift indicator

The pop-up that indicates the current gear position is displayed in the cluster for about 2 seconds when shifting into other positions (P/R/N/D).

Automatic transmission shift indicator / Dual clutch transmission shift indicator

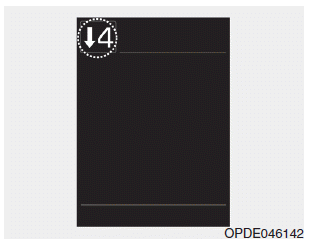

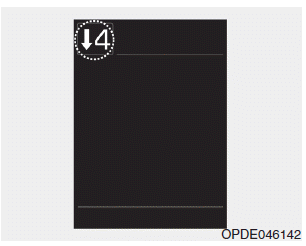

Hyundai i30. Transmission shift indicator

In the manual shift mode, this indicator informs which gear is desired whilst driving to save fuel.

  • Automatic transmission shift indicator
    - Shifting up :▲2, ▲3, ▲4, ▲5, ▲6
    - Shifting down :▼1, ▼2, ▼3, ▼4, ▼5
  • Dual clutch transmission shift indicator
    - Shifting up :▲2, ▲3, ▲4, ▲5, ▲6, ▲7
    - Shifting down :▼1, ▼2, ▼3, ▼4, ▼5, ▼6

For example

Hyundai i30. Transmission shift indicator: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear). Hyundai i30. Transmission shift indicator: Indicates that shifting down to the 3rd gear is desired (currently the shift lever is in the 4th, 5th, or 6th gear).

When the system is not working properly, the indicator is not displayed.
