Hyundai i30 (PD): Interior features / Cargo area cover
Use the cover to hide items stored in the cargo area.
The cargo area cover will lift when the tailgate is opened.

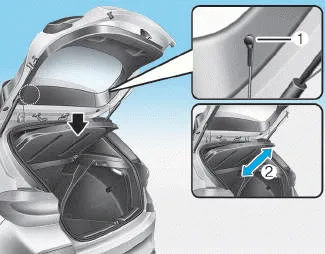

Disconnect the strap (1) from the holder if you want to return the cover to the original position.To remove the cargo area cover completely, lift the cover to a 50-degree angle and pull it out (2).
NOTICE
Since the cargo area cover may be damaged or deformed, do not put luggage on it when it is being used.
WARNING
- Do not place objects on the cargo area cover whilst driving. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when braking.
- Never allow anyone to ride in the luggage compartment. It is designed for luggage only.
- Maintain balance of the vehicle and locate the weight as far forward as possible.
â– 5 Door â– Wagon â– Fastback To keep items from shifting in the luggage compartment, you can use the four holders located in the luggage compartment to attach the luggage net.
Your vehicle is equipped with a barrier net. When you load some cargoes on the rear seat or rear cargo area, you must install the barrier net behind front or rear seatback.
