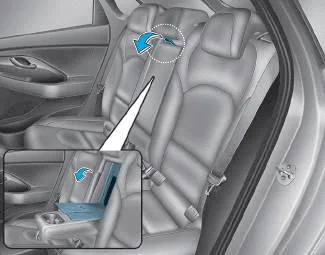

Armrest

Hyundai i30. Armrest, Carrying long/narrow cargo

The armrest is located in the centre of the rear seat. Pull the armrest down from the seatback to use it.

Carrying long/narrow cargo

Hyundai i30. Armrest, Carrying long/narrow cargo

Additional cargo space is provided to accommodate long/narrow cargo (skis, poles, etc.) not able to fit properly in the luggage compartment when closed.

1.Pull the armrest down.

2.Pull the cover down whilst pushing the release lever down.

CAUTION

  • Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.
  • When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving whilst driving.

WARNING

Cargo should always be secured to prevent it from being thrown about the vehicle in a collision and causing injury to the vehicle occupants. Do not place objects in the rear seats, since they cannot be properly secured and may hit the front seat occupants in a collision.
