Hyundai i-30: Blower / Blower Resistor (Manual)

Hyundai i30 (PD) 2018-2025 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Resistor (Manual)

Repair procedures
Inspection
1.

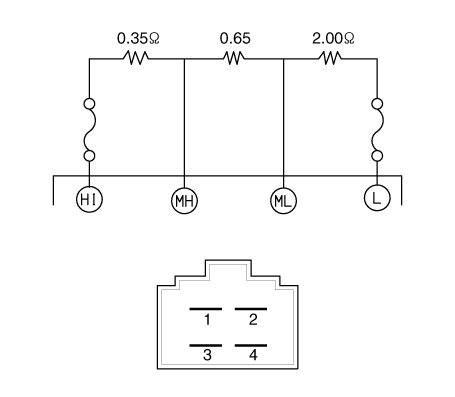

Measure the resistance between the terminals.
2.
The measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad center panel.
(Refer to Body - "Crash Pad Center Panel")
3.

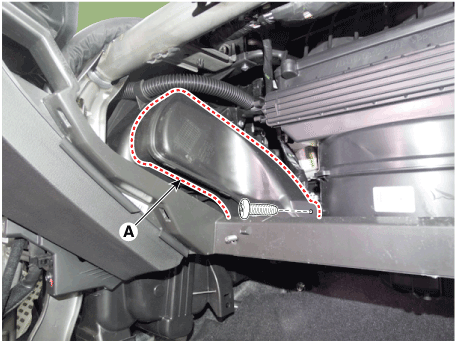

Remove the passenger's side shower duct (A) after loosening the screw.

4.

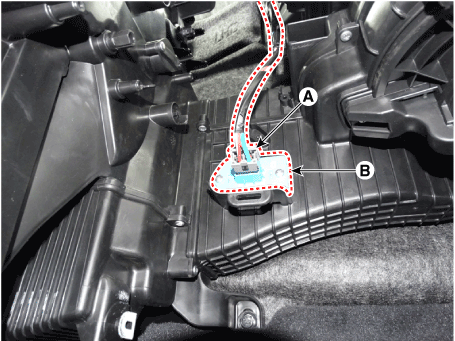

Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.

5.
Installation is the reverse order of removal.
