Hyundai i-30: Electro Chromic Inside Rear View Mirror / Components and components location

Electro Chromic Inside Rear View Mirror

..

Description and operation

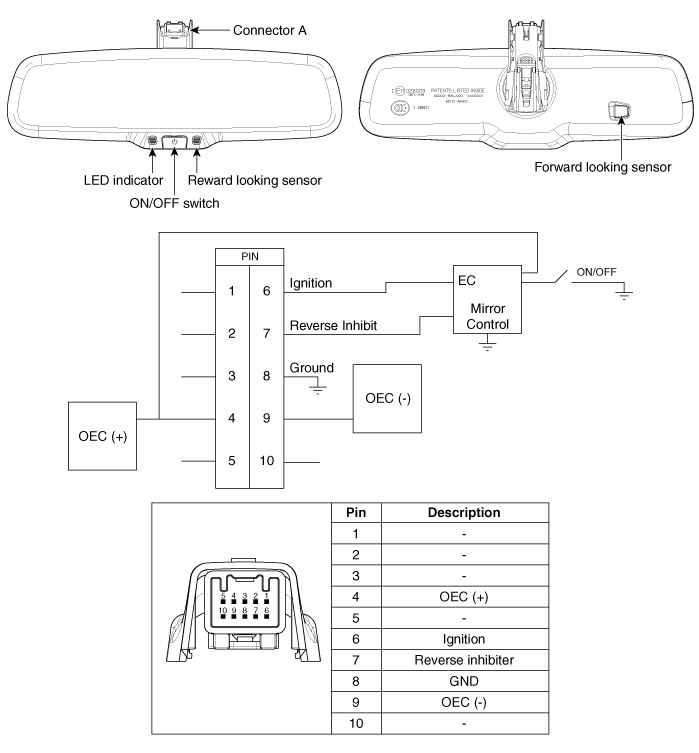

Description The ECM (Electro Chromatic inside rear view Mirror) is one that automatically dims to protect the driver’s eyes when it senses light reflecting from the car behind...

Other information:

Hyundai i30 (PD) 2018-2025 Service Manual: Schematic diagrams

..

Hyundai i30 (PD) 2018-2025 Service Manual: Air Ventilation Seat

Components and components location Component Location 1. Ventilation seat blower. 2. Ventilation seat unit (Assist seat only). Schematic diagrams Circuit Diagram Air Ventilation Unit Connector No Connecter A Connecter B Connecter C 1 Seat vent unit IGN 1 Driver vent switch led (Low) vent / heater power 2 Driver blower power Driver vent switch led (Mid) Driver heater power 3 Driver blower speed Driver vent switch led (High) Driver heater ground 4 Driver RPM input Driver NTC (+) Driver / Assist, Vent / Heater ground 5 Driver heater switch - vent / heater power 6 Driver vent switch Illumination (-) - 7 Illumination (+) Driver NTC (-) Assist heater power 8 Driver heater LED (Low) Driver blower ground - 9 Driver heater LED (Mid) Driver vent led (Low) Assist heater ground 10 Driver heater LED (High) Driver vent led (Mid) Driver / Assist, Vent / Heater ground 11 Vent seat unit IGN 2 Driver vent led (High) 12 Assist blower power Assist NTC (+) 13 Assist blower speed - 14 Assist blower RPM input - 15 Assist heater switch Assist NTC (-) 16 Assist vent switch Assist blower ground 17 Detent 18 Assist heater LED (Low) 19 Assist heater LED (Mid) 20 Assist heater LED (High) Repair procedures Removal [Ventilation Blower] 1...
