Hyundai i-30: Your vehicle at a glance / Engine compartment

Hyundai i30 (PD) 2018-2022 Owner's Manual / Your vehicle at a glance / Engine compartment

Hyundai i30. Engine compartment

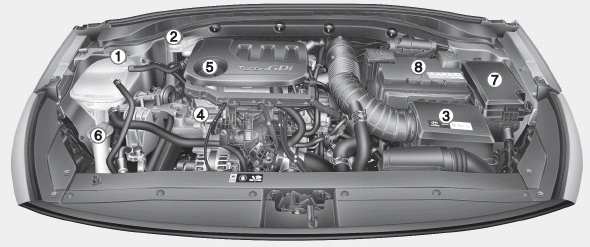

■ Petrol Engine (Kappa 1.0 T-GDI)

Hyundai i30. Engine compartment

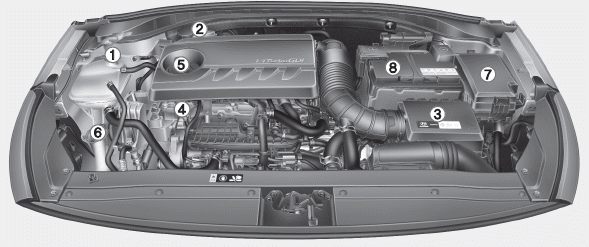

■ Petrol Engine (Kappa 1.4 T-GDI)

1. Engine coolant reservoir/Engine coolant cap
2. Brake/clutch fluid reservoir
3. Air cleaner
4. Engine oil dipstick
5. Engine oil filler cap
6. Windscreen washer fluid reservoir
7. Fuse box
8. Battery

Hyundai i30. Engine compartment

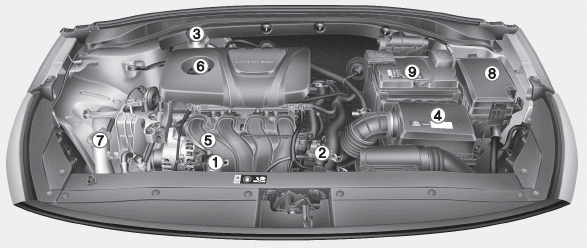

■ Petrol Engine (Kappa 1.4 MPI)

Hyundai i30. Engine compartment

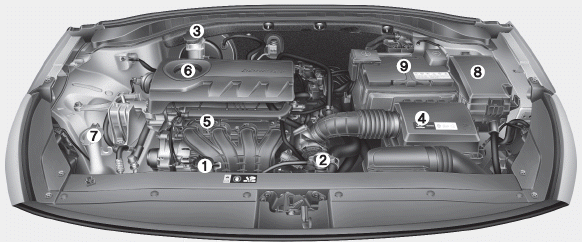

■ Petrol Engine (Gamma 1.6 MPI)

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery

Hyundai i30. Engine compartment

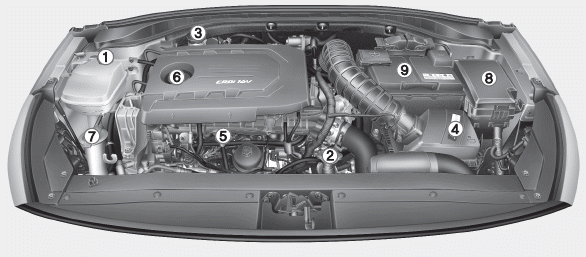

■ Diesel Engine (U2 1.6 TCI)

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery

Hyundai i30. Engine compartment

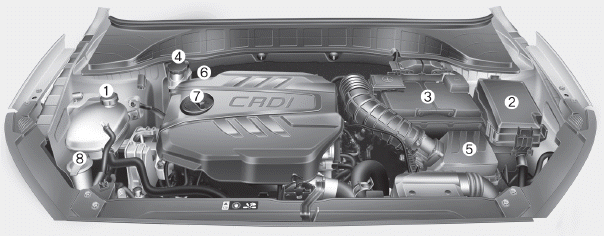

■ Diesel Engine (Smartstream D1.6 T-GDI)

1. Engine coolant reservoir/Engine coolant cap
2. Fuse box
3. Battery
4. Brake/clutch fluid reservoir
5. Air cleaner
6. Engine oil dipstick
7. Engine oil filler cap
8. Windscreen washer fluid reservoir
