Hyundai i-30: Auto Lighting Control System / Components and components location

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Auto Lighting Control System / Components and components location

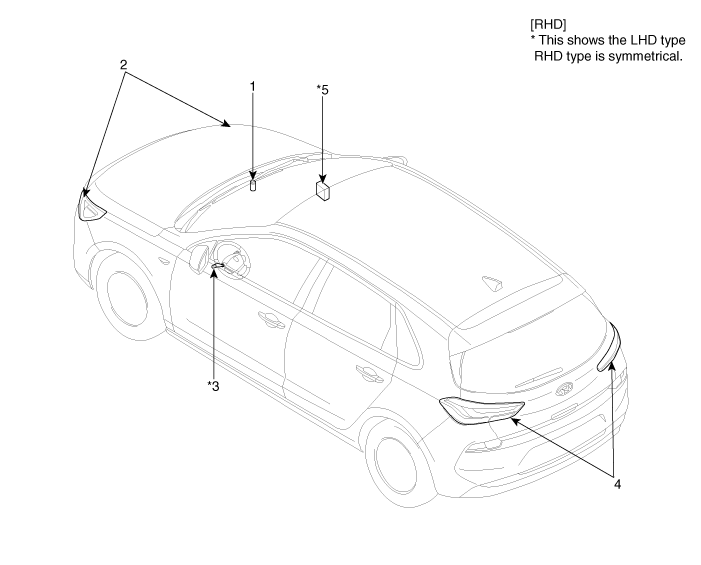

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. BCM (Body Control Module)

    Specifications

    Specifications Items Specifications Rated voltage 5V Load Max...

    Schematic diagrams

    ..
