Hyundai i-30: Hood / Hood Latch Release Handle

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle

Components and components location

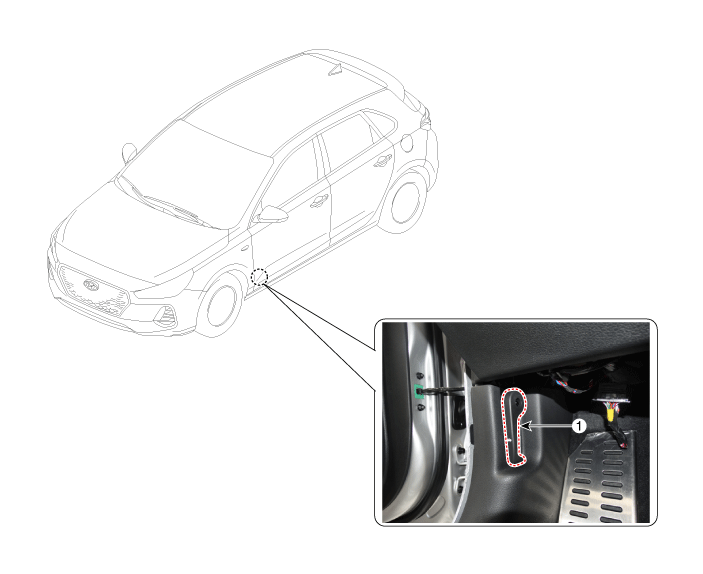

Component Location

1. Hood latch release handle


Repair procedures
Replacement
1.

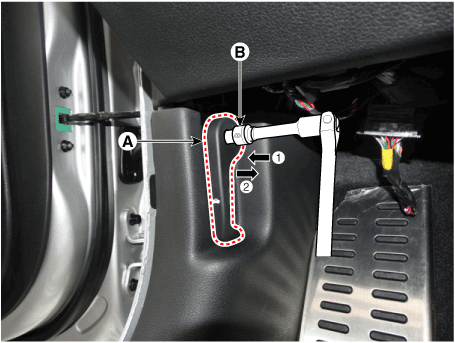

Using a socket (B), remove the hood release handle (A).

2.
To install, reverse removal procedure.

Make sure the hood latch cable is connected properly.
Make sure the hood locks / unlocks and opens / closes properly.
