Hyundai i-30: Auto Head Lamp Leveling Device / Components and components location

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Auto Head Lamp Leveling Device / Components and components location

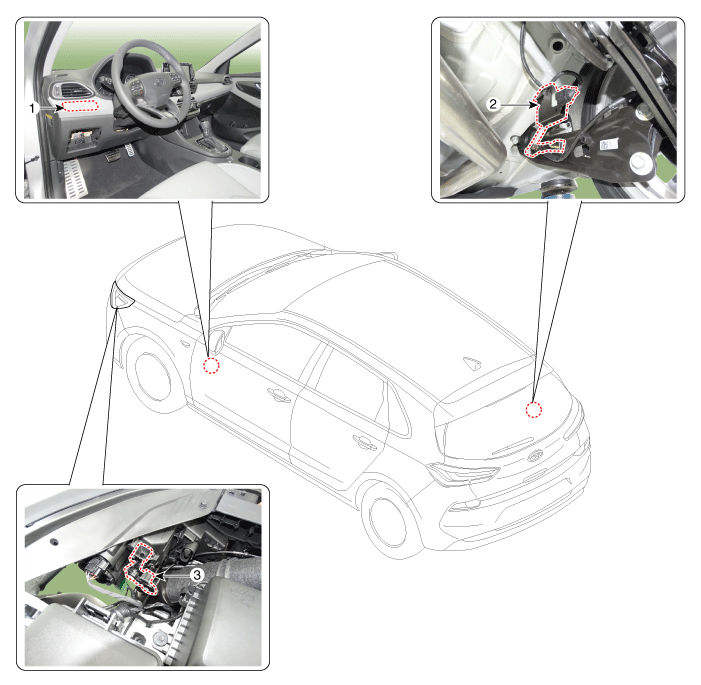

Component Location

1. Head lamp leveling switch (Manual type only)
2. Head lamp leveling unit (Auto type only)
3. Head lamp leveling actuator

    Auto Head Lamp Leveling Device

    ..

    Auto Head Lamp Leveling Unit

    Schematic diagrams Circuit Diagram Description and operation Description According to driving environment and loading state of vehicle, head lamp lighting direction is changed to keep the driver's visibility range and to protect the driver's vision from glare, aiming at safety driving...
