Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Button Engine Start System / Components and components location

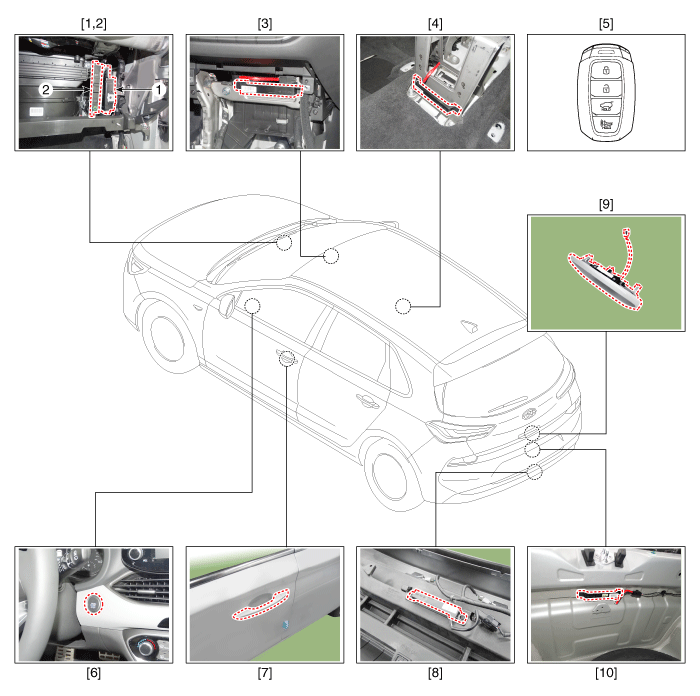

Component Location

1. Smart key unit (SMK)
2. Body control module (BCM)
3. Interior antenna 1
4. Interior antenna 2
5. FOB key
6. Start Stop Button (SSB)
7. Door handle & door antenna
8. Bumper antenna
9. Tailgate lid switch
10. Tailgate antenna

    Button Engine Start System

    ..

    Schematic diagrams

    ..
