Hyundai i-30: ABS (Anti-Lock Brake System) / Components and components location
Hyundai i30 (PD) 2018-2025 Service Manual / Brake System / ABS (Anti-Lock Brake System) / Components and components location
| Components |
| [LHD] |

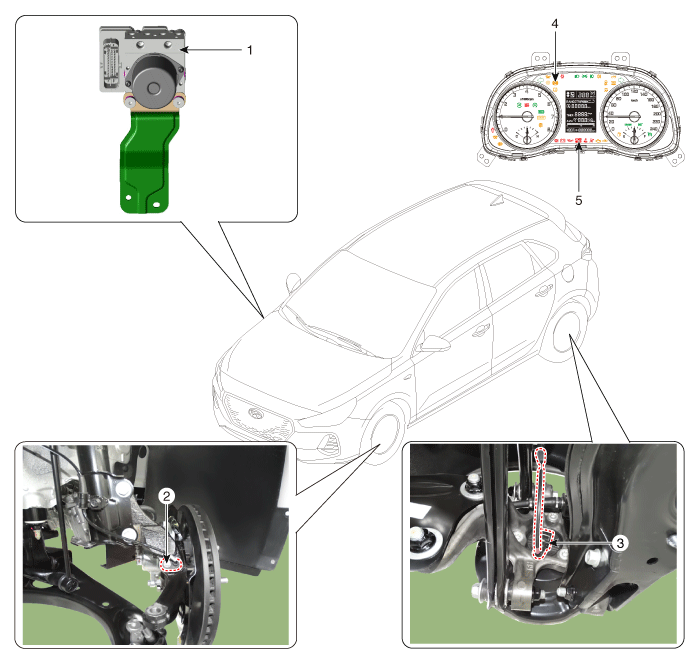

| 1. ABS Control
Module (HECU) 2. Front Wheel Speed Sensor 3. Rear Wheel Speed Sensor |
4. ABS Warning
lamp 5. EBD / Parking brake warning lamp |
| [RHD] |
| 1. ABS Control
Module (HECU) 2. Front Wheel Speed Sensor 3. Rear Wheel Speed Sensor |
4. ABS Warning
lamp 5. EBD / Parking brake warning lamp |
Description and operation
Description
This specification applies to HCU (Hydraulic Control Unit) and ECU (Electronic
Control Unit) of the HECU. (Hydraulic and Electronic Control Unit)
This specification is for the wiring design and installation of ABS ECU...
