Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Components and components location

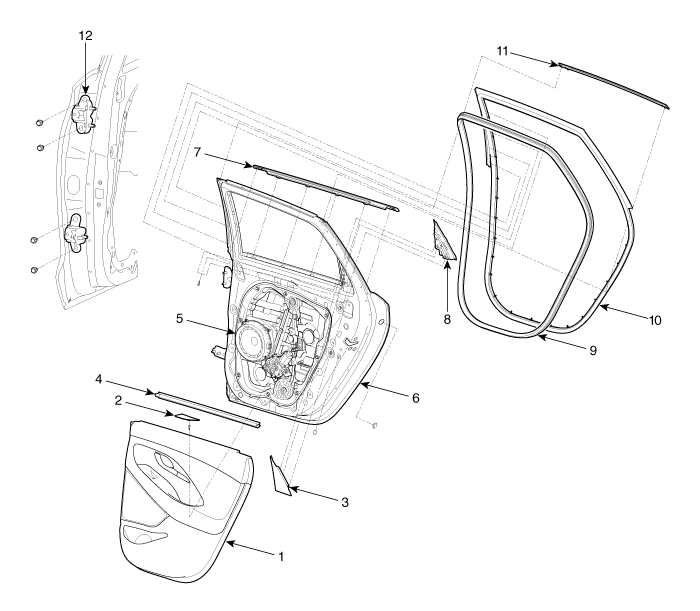

Components

1. Rear door trim
2. Rear door pull handle cover
3. Rear door delta inner cover assembly
4. Rear door belt inside weatherstrip
5. Rear door module
6. Rear door panel

7. Rear door belt outside weatherstrip
8. Rear door delta molding assembly
9. Rear door body side weatherstrip
10. Rear door side weatherstrip
11. Rear door frame molding assembly
12. Rear door hinge

Repair procedures

Adjustment Glass Adjustment • Check the glass run channel for damage or deterioration, and replace them if necessary...
