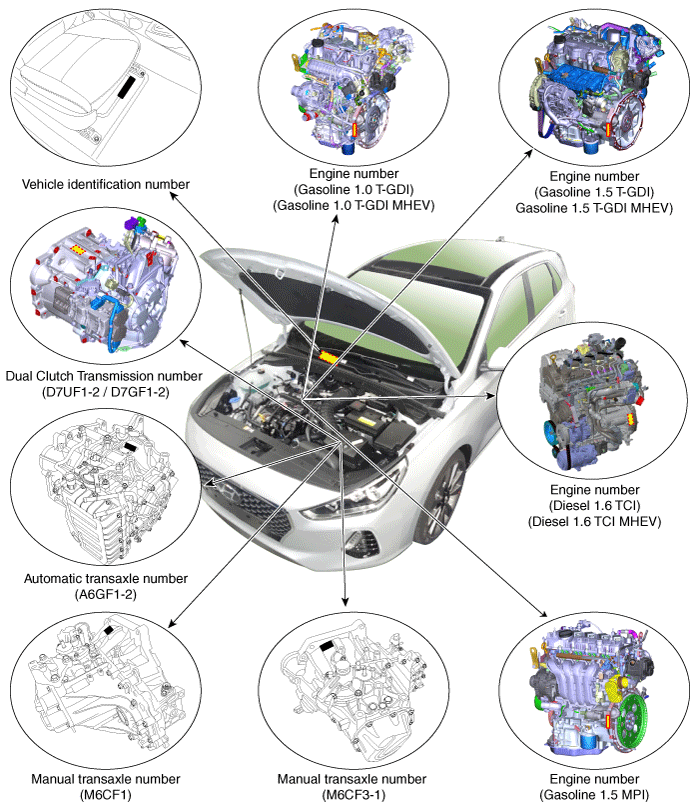

Identification Number

Identification Number Description

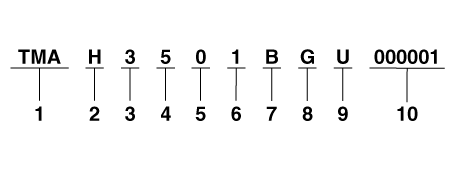

Vehicle Identification Number

1.
World Manufacturer Identifier (WMI)
- TMA : Passenger vehicle
2.
Vehicle line
- H : I30
3.
Model & Series
- 1 : Low grade (L)
- 2 : Middle-Low grade (GL)
- 3 : Middle grade (GLS, JSL, TAX)
- 4 : Middle-High grade (HGS)
- 5 : High grade (TOP)
4.
Body/Cabin type, Gross Vehicle Weight Rating
- 5 : 5DR
- 8 : Wagon
- H : FASTBACK
5.
Restraint system, Brake system
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
6.
Engine type
- A : Diesel 1.6 / Desel 1.6 MHEV
- B : Gasoline 1.0 T-GDI / Gasoline 1.0 T-GDI MHEV
- C : Gasoline 1.5 MPI
- D : Gasoline 1.5 T-GDI / Gasoline 1.5 T-GDI MHEV
7.
Check digit or Driver’s side & Transmission
- A : LHD & MT
- B : LHD & AT
- G : LHD & DCT
- L : RHD & MT
- M : RHD & AT
- V : RHD & DCT
8.
Model year
- M : 2021, N : 2022, P : 2023, R : 2024 .......
9.
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- C : Cheonju (Korea)
- H : Alabama (U.S.A)
- M : Chennai (India)
- U : Ulsan (Korea)
- Z : Izmit (Turkey)
- J : Ostrava (Czech)
- P : Piracicaba (Brazil)
10.
Vehicle production sequence number
- 000001 - 999999
Paint Code
Code
Color
PAE
Phanton Black
Z3G
Micron Gray
JHR
Engine Red
U3S
Platium Silver
R3U
Are Blue
PYW
Polar White
Y3Y
White Sand
PR2
Fiery Red
UB2
Clen Slate
XN3
Moon Rock
RB4
Demitasse Brown
SG5
Stargazing Blue
PF8
Intense Copper

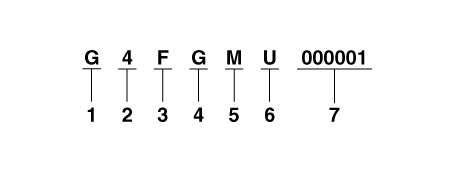

Engine Number

1.
Engine fuel
- G : Gasoline
- D : Diesel
2.
Engine range
- 3 : 3 Cycle 3 cylinder
- 4 : 4 cycle 4 cylinder
3.
Engine development order and capacity
- F : GAMMA engine (Gasoline)
- L : Kappa engine (Gasoline)
- F : U-Ⅱ engine (Diesel)
- F : NEW-U engine (Diesel)
4.
Engine Capacity
- C : 999cc (Gasoline 1.0 T-GDI / Gasoline 1.0 T-GDI MHEV)
- E : 1598cc (Diesel 1.6 TCI / Diesel 1.6 TCI MHEV)
- H : 1482cc (Gasoline 1.5 T-GDI / Gasoline 1.5 T-GDI MHEV)
- G : 1498cc Gasoline 1.5 MPI)
5.
Production Year
- M : 2021, N : 2022, P : 2023, R : 2024 .......
6.
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
7.
Engine production sequence number
- 000001 - 999999
Transaxle Number

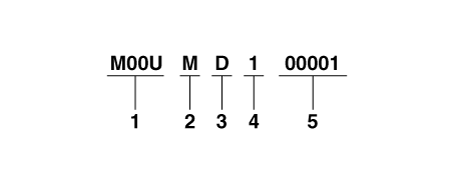

Manual (D7UF1-2 / D7GF1-2)

1.
Assembly code
2.
Production year
- M : 2021, N : 2022, P : 2023, R : 2024 .......
3.
Plant of production
- D : Hyundai Dymos
4.
Month of production
- 1 - 9 : 1 - 9 month
- A - C : 10 - 12 month
5.
Transaxle production sequence number
- 00001 - 99999
Automatic (A6GF1-2)

1.
Model
- RA : A6GF 1-2 (Gasoline 1.5 MPI)
2.
Model year
- M : 2021, N : 2022, P : 2023, R : 2024 .......
3.
Final gear ratio
- W : 3.796
4.
Detailed classification
- B : Gasoline 1.5 MPI
5.
Plant of production
- 2 : Powertech Plant2
- 4 : Powertech Plant4
- U : Ulsan Plant 1
- S : Ulsan Plant 2
- N : Ulsan Plant 3
- H : Hwasung
6.
Transaxle production sequence number
- 000001 - 999999

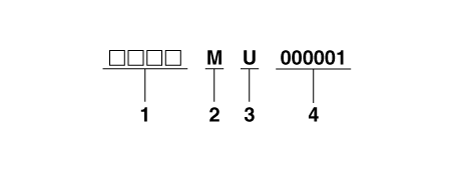

Manual (M6CF1)

1.
Assembly code of plant
2.
Model year
- M : 2021, N : 2022, P : 2023, R : 2024 .......
3.
Plant of production
- B : Beijing (China)
- J : Ostrava (Chech)
- M : Chennai (India)
- H : Hwasung (Korea)
- U : Ulsan (Korea)
4.
Transaxle production sequence number
- 000001 - 999999

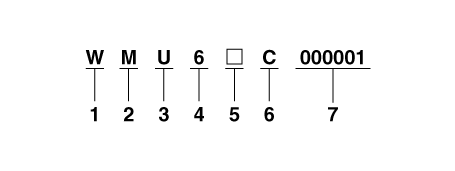

Manual (M6CF3-1)

1.
Model
- W : M6CF3-1
2.
Model year
- M : 2021, N : 2022, P : 2023, R : 2024 .......
3.
Plant of production
- B : Beijing (China)
- W : Hwasung (Korea)
- J : Ostrava (Chech)
- M : Chennai (India)
- U : Ulsan (Korea)
4.
Speed
- 6 : 6-speed
5.
Spare
6.
Final gear ratio
- A : 3.471
- B : 3.833
- C : 3.941
- D : 4.059
- E : 4.188
- F : 4.267
- G : 4.400
- H : 3.706
- J : 3.647
- K : 4.333
- L : 4.467
- M : 4.563
- N : 3.250
- P : 3.048
- R : 3.722
7.
Transaxle production sequence number
- 000001 - 999999
