Hyundai i-30: IMS(Integrated Memory System) / Components and components location
Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / IMS(Integrated Memory System) / Components and components location

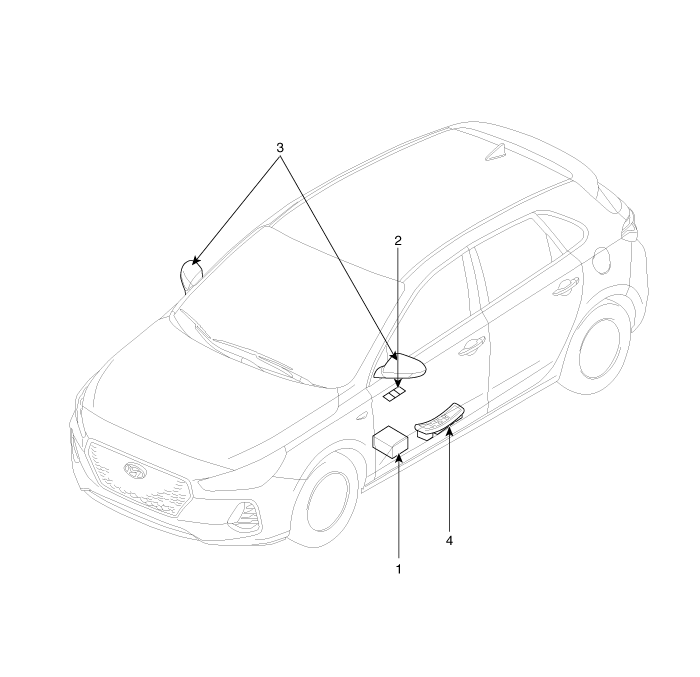

| Components |
| 1. Memory power
seat unit (PSM) 2. IMS control switch |
3. Outside Mirror 4. IMS Mirror control (Driver power window switch) |
Specifications
Specifications
[Memory Power Seat Unit ]
Item
Specifications
Rated voltage
DC 12V
Operating Voltage
DC 9V - 16V
Operating Temperature Range
-30°C to 75°C
Dark current
Max...
