Hyundai i-30: Drive Belt System / Crankshaft Damper Pulley
Repair procedures
1. |
Remove the RH front wheel.
(Refer to Suspension System - "Wheel")
|
2. |
Remove the engine room under cover and engine room RH side cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
|
3. |
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
|
4. |
Remove the crankshaft damper pulley.
(1) |
Using the SST (09231-2M100, 09231-2J210) to hold the crankshaft
damper pulley.
|
(2) |

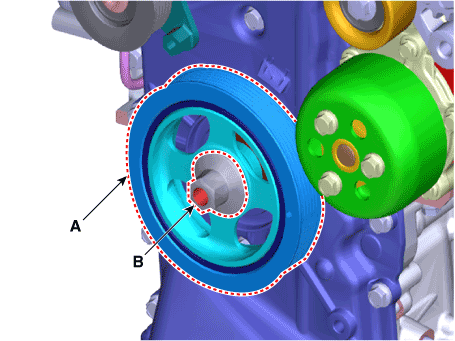

Remove the crankshaft damper pulley bolt (B) and then remove
the crankshaft damper pulley (A).
Tightening torque :
[75.5 - 81.4 N.m (7.7 - 8.3 kgf.m, 55.7 - 60.0 lb-ft)]
+ [76 - 78°]
|
![](images/crankshaft_damper_pulley-405/380/sacem02307l.gif)
|
|
5. |
Install in the reverse order of removal.
|
