Description
PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to BCM via LIN communication.
BCM decides the alarm level by the transmitted communication message from the slave sensors, then operates the buzzer or transmits the data for display.

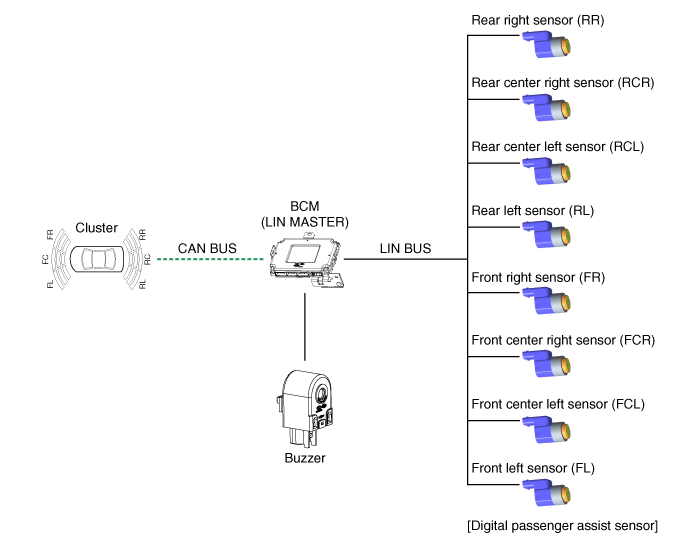

Block Diagram

System Operation Specification
Initial mode
1.
System initializing time
PDW-F : 500ms after IGN1+ initial D Gear + below 10 Km/h
PDW-R : 500ms after IGN1+ initial R Gear
2.
PDW recognizes LID and sets the sensor ID up during initialization.
3.
PDW activates each sensor and then executes the diagnosis after finishing initialization of BCM.
4.
PDW starting buzzer is normally worked, when sensor does not send an error message and after finishing error diagnosis.
5.
If any failure is received from the any sensors, PDW starting buzzer does not work but the failure alarm is operated for a moment.
If you have display option, warning sign is also shown on it.

Buzzer for sensor failure is operated once, but display is shown continuously until it is repaired completely.
6.
BCM memorizes the completed initializing status of sensor.
Normal mode
1.
PDW-F : Lin communication starts and keeps the routine after IGN1 ON+D gear + below 10 km/h.
PDW-R : Lin communication starts and keeps the routine after IGN1 ON+R gear
2.
After initializing, the routine starts at once without PDW starting warning sound.
3.
Alarms of obstacle consists of 3 level 1,2,3 step and 1,2 alarm sounds intermittently and 3 alarm sounds continuously. 1 level alarm doesn't exist in the front ultrasonic sensor.
4.
In display, the data of each sensor is sent from BCM to display, for example cluster. CAN communication is used for transmission and maximum gateway time is 50ms.
5.
The efficient vehicle speed of PDW operation is under 10Km/h.
6.
Operation doesn't start or stops at gear N, P.
Sensing Area
Level
Distance range
Allowed range
1
Front : 61 - 100 cm (24.02 - 39.37 in.) / Rear : 61 - 120 cm (24.02 - 47.2 in.)
± 15 cm (5.90 in.)
2
31 - 60 cm (12.20 - 23.62 in.)
± 15 cm (5.90 in.)
3
0 - 30 cm (0 - 11.81 in)
± 10 cm (3.94 in.)

*Measurement condition : PVC pipe - Diameter 75 mm (0.0394 in.), length 1 m (39.37 in.), at normal temperature

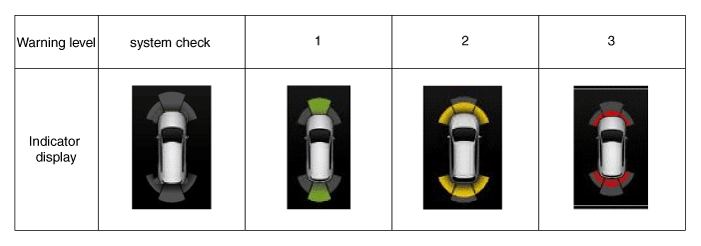

Display Alarm Indicator Specification

    Components and components location

    Component Location 1. BCM (Body Control Module) 2. Ultrasonic sensor    • Rear parking assist control unit function is built in BCM (Body Control Module)...

    Ultrasonic Sensor

    Schematic diagrams Circuit Diagram Repair procedures Removal 1. Disconnect the negative (-) battery terminal...
