Hyundai i-30: Parking Distance Warning (PDW) / Components and components location
![](images/components_and_components_location-1118/380/spdbe70327e.gif)

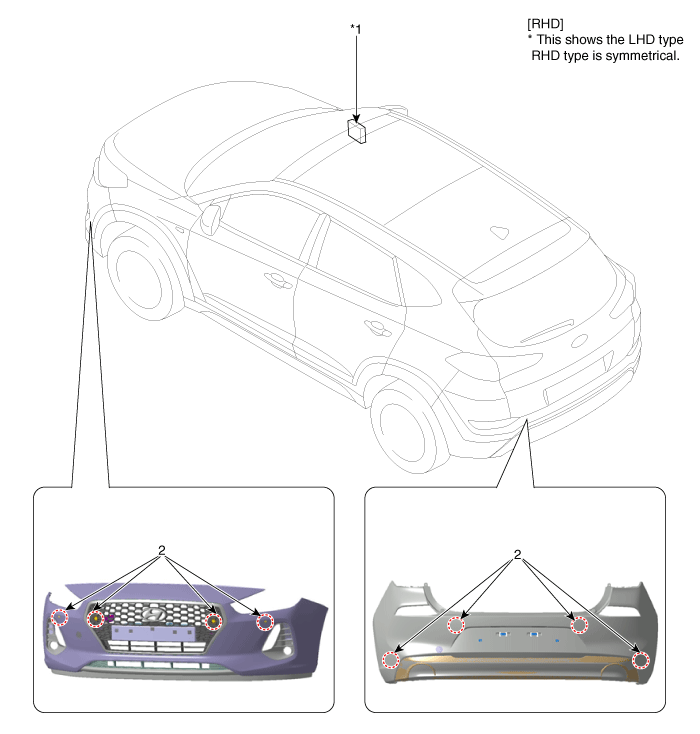

1. BCM (Body
Control Module)
|
2. Ultrasonic
sensor
|
•
|
Rear parking assist control unit function is built in BCM (Body
Control Module).
|
|
Description
•
PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are
used to detect obstacles and transmit the result in three separate warning
levels, the first, second and third to BCM via LIN communication...
