Hyundai i-30: Clutch Switch / Description and operation

Hyundai i30 (PD) 2018-2025 Service Manual / Clutch System / Clutch Switch / Description and operation

Description
Ignition lock switch is mounted on the clutch pedal.
Ignition lock switch is operated when you press the clutch pedal.
If the clutch pedal is not pressed down, the engine is not started.

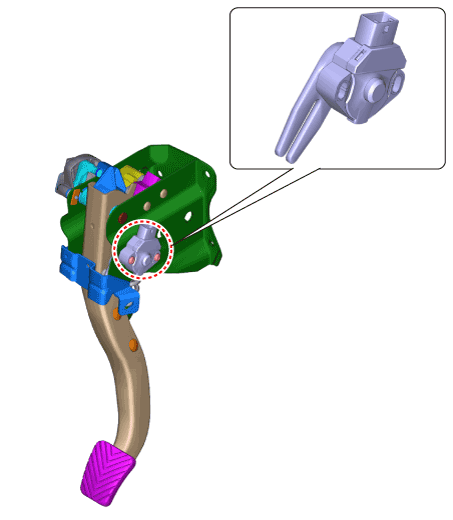

[Manual Transaxle Type]

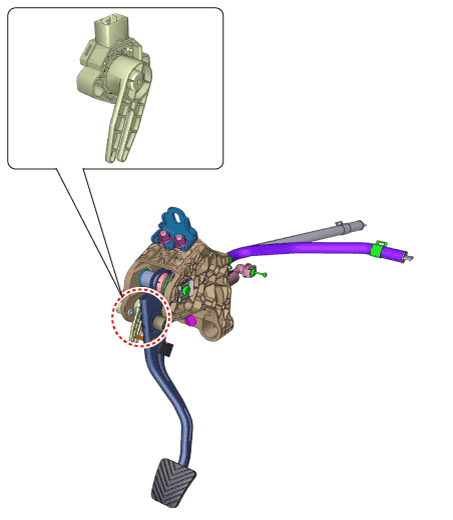

[Intelligent Manual Transaxle Type]

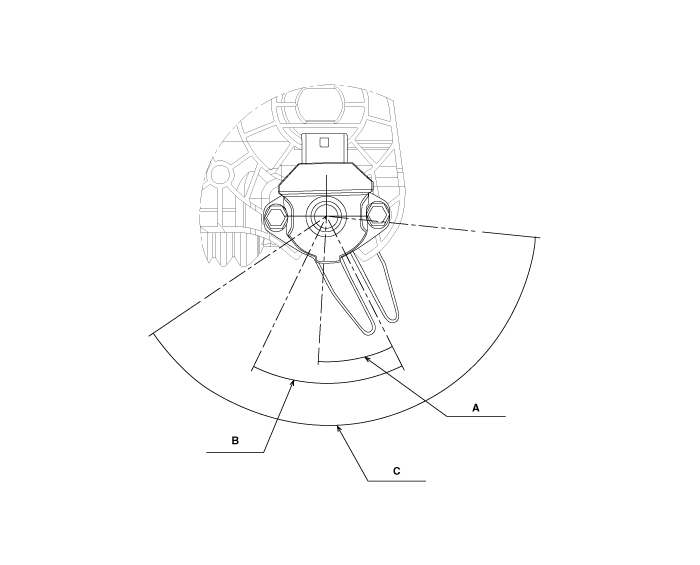

Ignition lock & clutch switch operating locus
If the clutch pedal is pressed down, (A) operate ignition lock switch at a location.
Engine
Operation switch stroke
Gasoline 1.0 T-GDI
Clutch switch ON -> OFF (A)
Ignition lock switch OFF -> ON (B)
Switch full stroke (C)
70 ± 3
121.8 ± 7.7
140 ±3
Gasoline 1.5 MPI
Clutch switch ON -> OFF (A)
Ignition lock switch OFF -> ON (B)
Switch full stroke (C)
70 ± 3
121.8 ± 7.7
140 ±3
Diesel 1.6 TCI
Clutch switch ON -> OFF (A)
Ignition lock switch OFF -> ON (B)
Switch full stroke (C)
63.5 ± 3
119 ± 77
150 ± 3

    Specifications

    Specifications Item Specifications Working voltage DC 12.5V ± 0.3V Operating force Initial position : 0...

    Repair procedures

    Removal [Manual Transaxle Type] 1. Turn ignition switch OFF and disconnect the negative (-) battery cable...
