Hyundai i-30: Front Door / Front Door Latch

Hyundai i30 (PD) 2018-2024 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Latch

Components and components location
Component Location

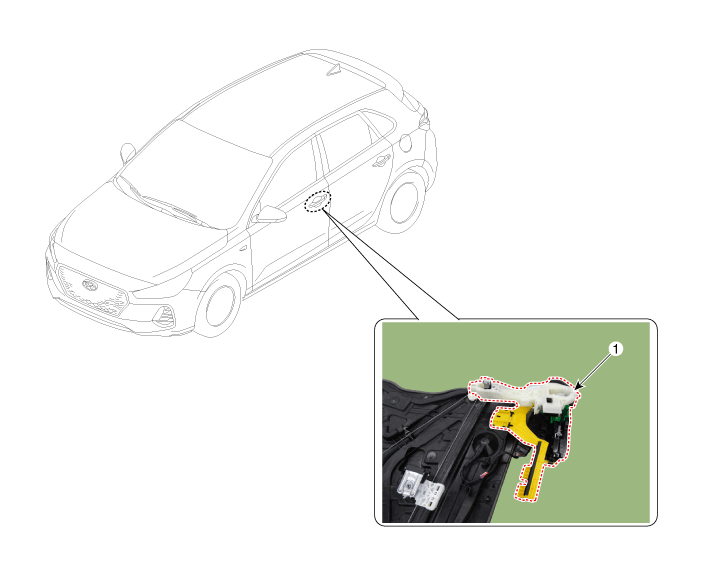

1. Front door latch


Repair procedures
Replacement
1.
Remove the front door module.
(Refer to Front Door - "Front Door Module")
2.

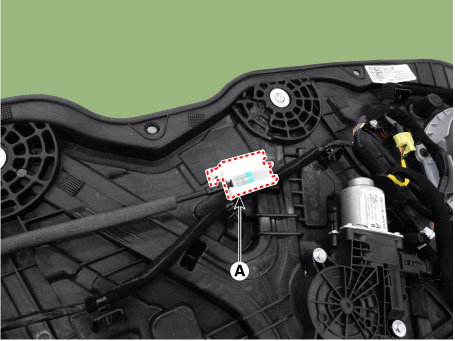

Remove the front door inside handle cage (A).

3.

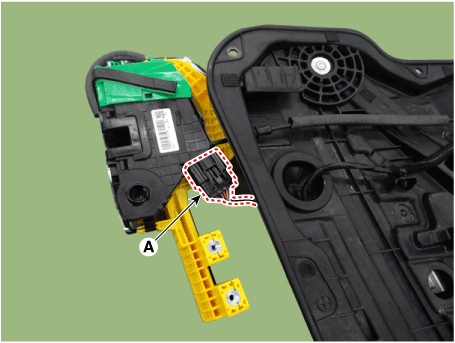

Disconnect the front door latch connector (A).

4.

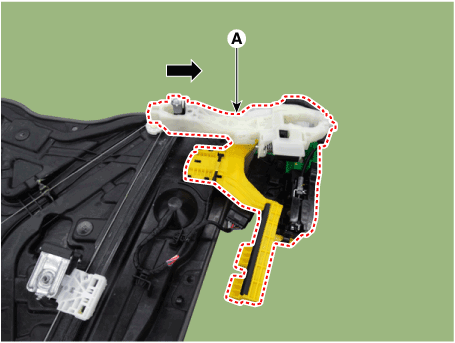

Remove the front door latch assembly (A) by pulling it in the direction of the arrow.

5.

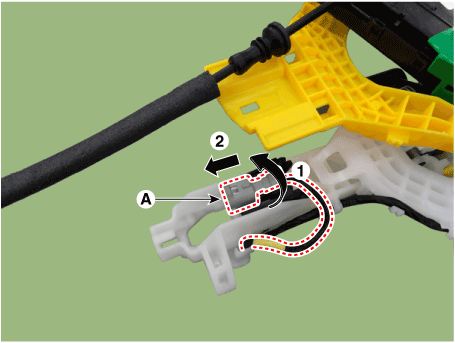

To remove the front door outside handle base connector (A), widen both sides of the wiring fastener and then push back the front door outside handle base connector.

6.

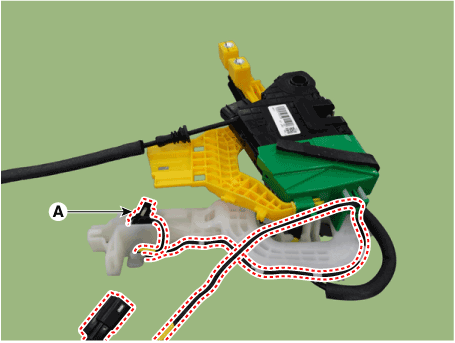

Remove the front door outside handle connector wiring harness (A).

7.

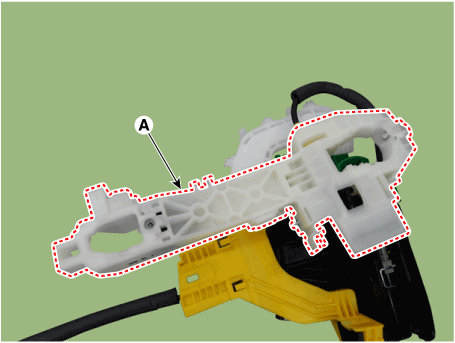

Remove the front door outside handle base bracket (A).

8.

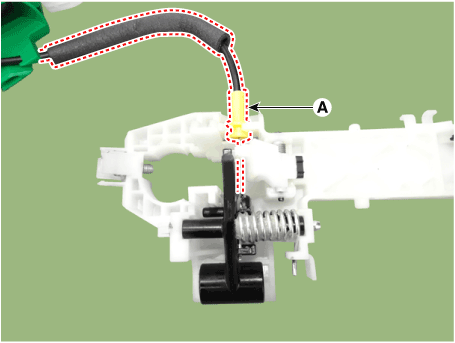

Remove the front door outside handle cable (A).

9.
To install, reverse removal procedure.

Make sure the connector is connected properly.
Make sure the door locks / unlocks and opens / closes properly.
