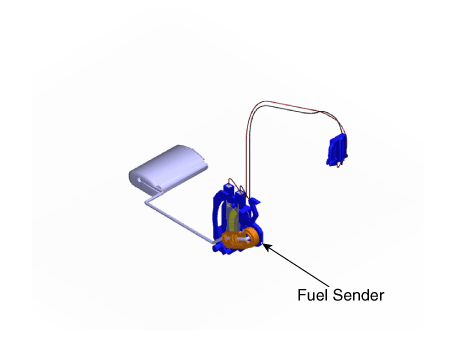

Hyundai i-30: Fuel Delivery System / Fuel Sender

Hyundai i30 (PD) 2018-2024 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Sender

Repair procedures

Removal

1.	Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump")

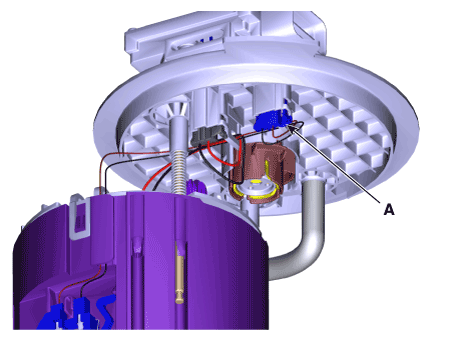

2.	Disconnect the fuel sender connector (A).

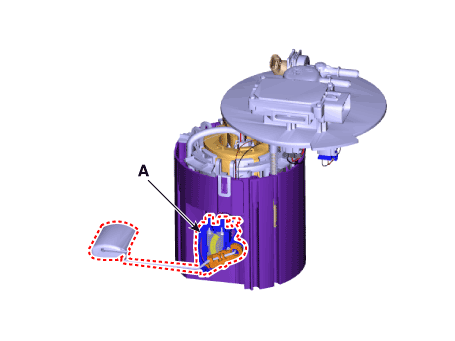

3.	Remove the fuel sender (A).

Installation

1.	Install in the reverse order of removal.
