Hyundai i-30: Installing a Child Restraint System (CRS) / Suitability of each seating position for ISOFIX Child Restraint Systems according to ECE regulations - 5 Door,Wagon

Hyundai i30 (PD) 2018-2024 Owner's Manual / Safety system of your vehicle / Child restraint system (CRS) / Installing a Child Restraint System (CRS) / Suitability of each seating position for ISOFIX Child Restraint Systems according to ECE regulations - 5 Door,Wagon

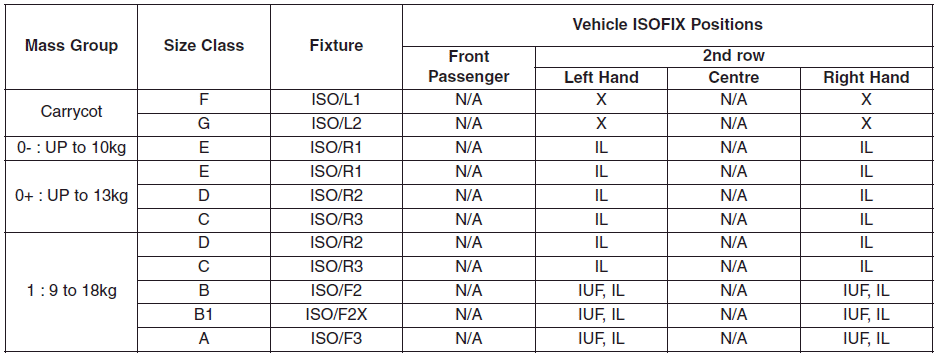

Hyundai i30. - 5 Door,Wagon

IUF = Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
IL = Suitable for particular ISOFIX child restraints systems (CRS) given in the attached list. These ISOFIX CRS are those of the "specific vehicle", "restricted" or "semi-universal" categories.
X = ISOFIX position not suitable for ISOFIX child restraint system in this mass group and/or this size class.
A - ISO/F3: Full-Height Forward-Facing toddler Child Restraint System (height 720mm)
B - ISO/F2: Reduced-Height Forward-Facing toddler Child Restraint System (height 650mm)
B1 - ISO/F2X: Reduced-Height Second Version Back Surface Shape Forward-Facing toddler Child Restraint System (height 650mm)
C - ISO/R3: Full-Size Rearward-Facing toddler Child Restraint System
D - ISO/R2: Reduced-Size Rearward-Facing toddler Child Restraint System
E - ISO/R1: Infant-Size Rearward-Facing Child Restraint System
F - ISO/L1: Left Lateral Facing position Child Restraint System (carry-cot)
G - ISO/L2: Right Lateral Facing position Child Restraint System (carry-cot)
