Hyundai i-30: Dual Clutch Transmission Control System / Input Speed Sensor

Hyundai i30 (PD) 2018-2024 Service Manual / DCT(Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Input Speed Sensor

Specifications

Specification

Item	Specification
Type	Hall effect sensor
Output signal	High: 11.8 - 16.8 mA
Output signal	Low: 5.9 - 8.4 mA

Description and operation

Description

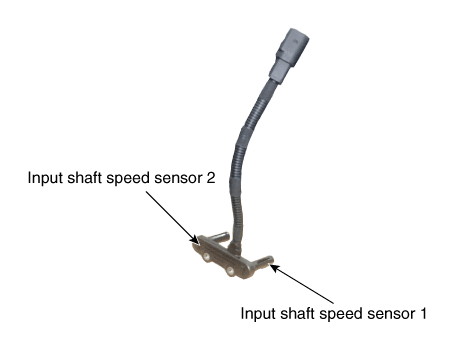

•	Components location : DCT (Dual Clutch Transmission)

•

Function

The input shaft speed sensor is important in that it detects the input shaft RPM and sends this information to the Transmission Control Module (TCM).

It provides important input information for electric control.

The information is needed in all operations, including feedback control, gear shift control and failure detection of other sensors.

Repair procedures

Inspection

The DCT system can be more quickly diagnosed for troubles by using the vehicle diagnostic system (diagnostic tool). (Refer to DTC guide)

diagnostic tool provides the following information.

1)	Self diagnosis : Inspects and displays diagnostic trouble code (DTC)

2)	Sensor data : Checks the system input/output value status

3)	Forced operation : Checks the system operating status

4)	Additional function : Controls system options, zero point adjustment and other functions

Removal

1.	Turn ignition switch OFF and disconnect the battery negative (-) terminal.

2.	Remove the air cleaner assembly and air duct. (Refer to Engine Mechnical System - "Air cleaner")

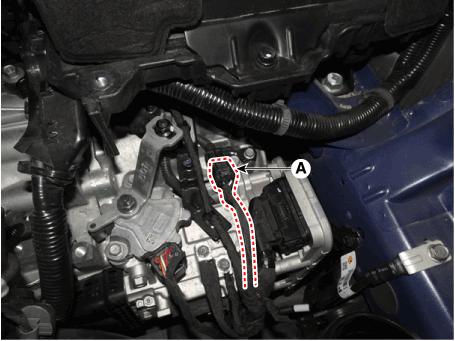

3.	Disconnect the input shaft speed sensor connector (A).

4.	Remove the clutch actuator. (Refer to Dual Clutch Transmission Control System - "Clutch Actuator & TCM Assembly")

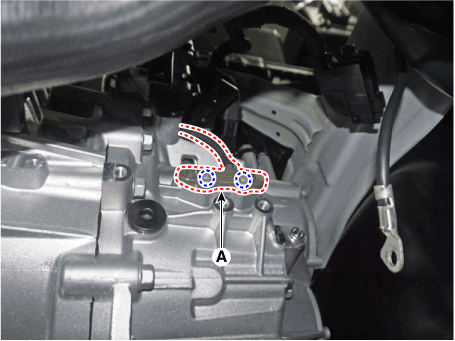

Remove the input shaft speed sensor (A).

Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2kgf.m, 7.2 - 8.7 lb-ft)

Installation

Install in the reverse order of removal.

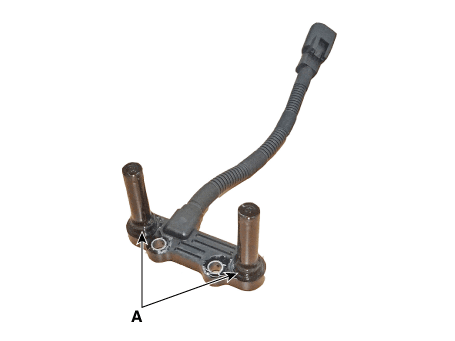

•	Before installing the input speed sensor,check the assembled state of the O-rings (A) and should apply gear oil to the surface of O- rings.
