Hyundai i-30: Rear Corner Radar System / Rear Corner Safety ON/OFF Switch

Hyundai i30 (PD) 2018-2024 Service Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Rear Corner Safety ON/OFF Switch

Components and components location

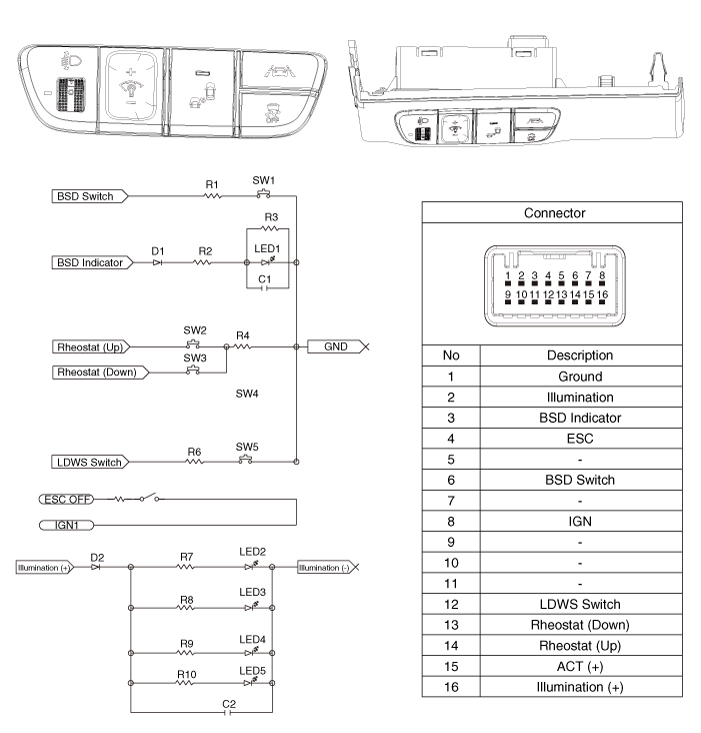

Circuit Diagram

Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.

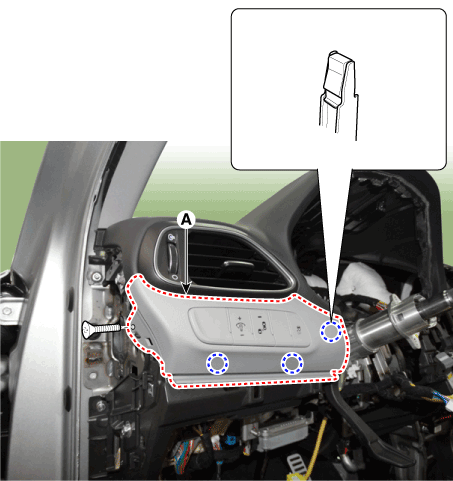

Remove the lower crash pad switch assembly (A) after disengaging the retaining clips.

3.

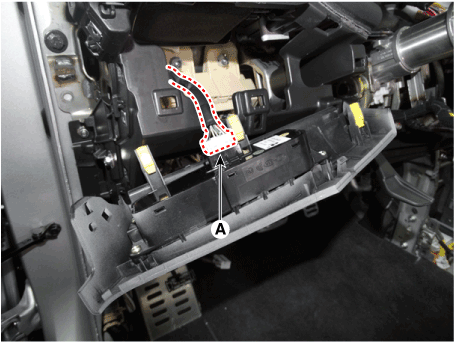

Disconnect the rheostat switch connector (A).

4.

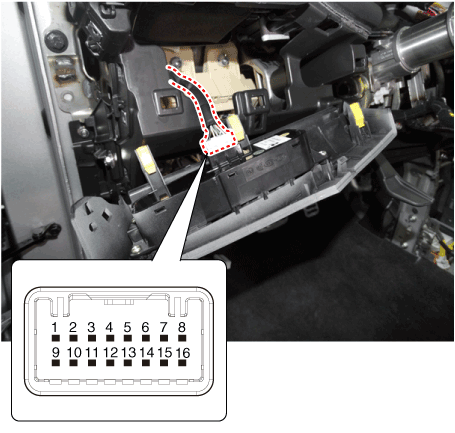

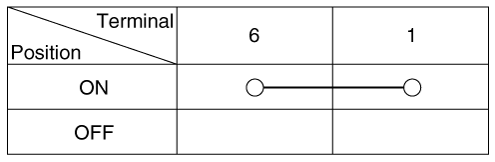

Operate the BSD switch, then check for continuity between terminals of BSD switch connector.
