Hyundai i30 (PD) 2018-2024 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Side Weatherstrip

Repair procedures
Replacement

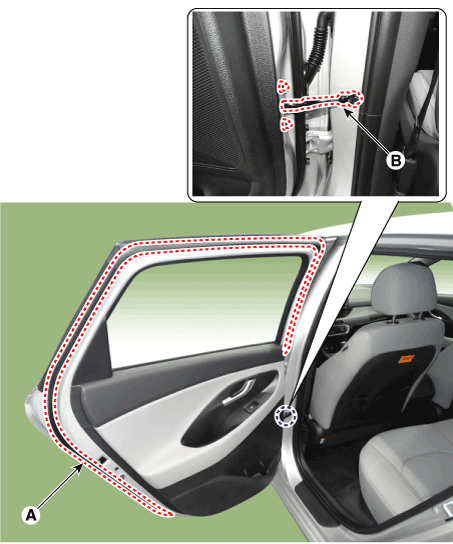

[Rear door side weatherstrip]
1.
Loosen the rear door checker (B) mounting bolt.
Tightening torque :
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m,15.9 - 23.9 lb-ft)
2.
Detach the clips, remove the rear door side weatherstrip (A).

3.
To install, reverse removal procedure.

Replace any damaged clips.

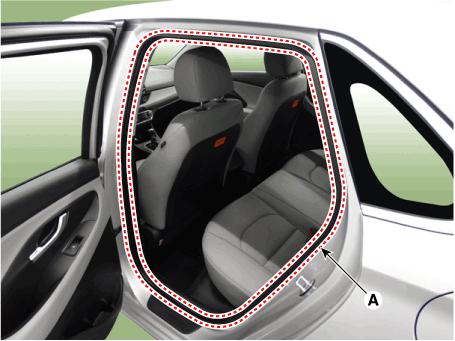

[Rear door body side weatherstrip]
1.
Detach the clips, then remove the rear door body side weatherstrip (A).

2.
To install, reverse the removal procedure.
