Hyundai i-30: Specifications & Consumer information / Recommended lubricants and capacities

Hyundai i30 (PD) 2018-2021 Owner's Manual / Specifications & Consumer information / Recommended lubricants and capacities

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy.

These lubricants and fluids are recommended for use in your vehicle.

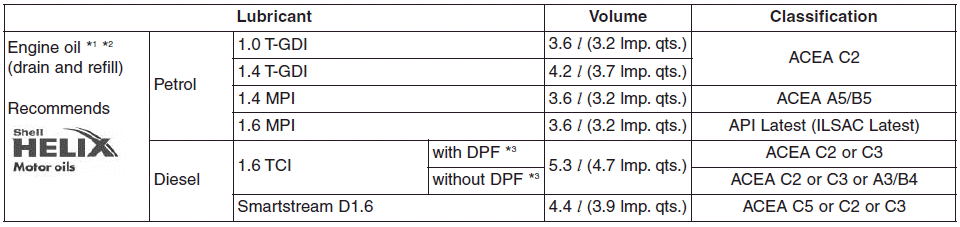

Hyundai i30. Recommended lubricants and capacities

*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3 : Diesel Particulate Filter

Hyundai i30. Recommended lubricants and capacities

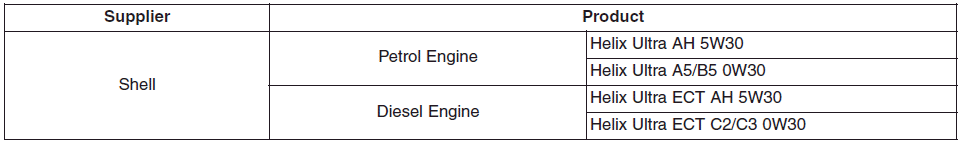

Recommended engine oil

Hyundai i30. Recommended lubricants and capacities

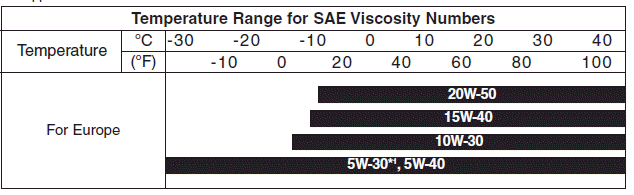

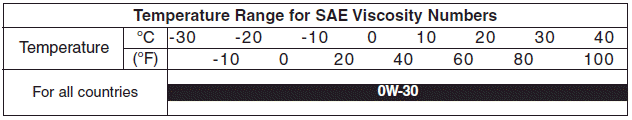

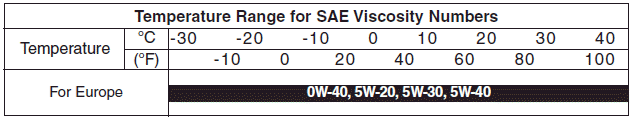

Recommended SAE viscosity number

CAUTION

Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining any lubricant.This is especially important in dusty or sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could be damaged.

Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil flowability). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however, higher viscosity engine oils are required for satisfactory lubrication in hot weather. Using oils of any viscosity other than those recommended could result in engine damage.

When choosing an oil, consider the range of temperature your vehicle will be operated in before the next oil change. Proceed to select the recommended oil viscosity from the chart.

Hyundai i30. Recommended lubricants and capacities

■ Kappa 1.0/1.4 T-GDI

Hyundai i30. Recommended lubricants and capacities

■ Kappa 1.4 MPI

Hyundai i30. Recommended lubricants and capacities

■ Gamma 1.6 MPI

Hyundai i30. Recommended lubricants and capacities

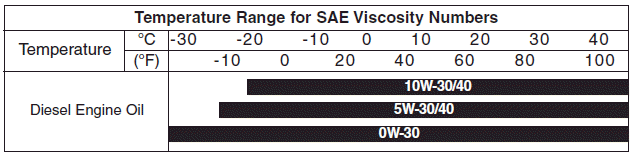

■ U2 1.6 TCI

Hyundai i30. Recommended lubricants and capacities

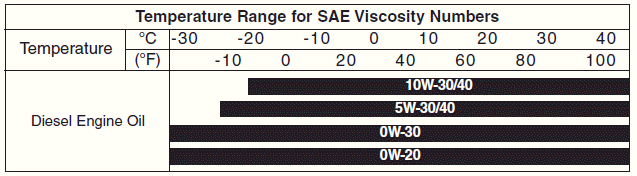

■ Smartstream D1.6
