Hyundai i30. Rear fog lamp

1. Loosen the pin-type retainers and screws of the rear wheel guard and then detach it from the rear bumper.

2. Reach your hand into the back of the rear bumper.

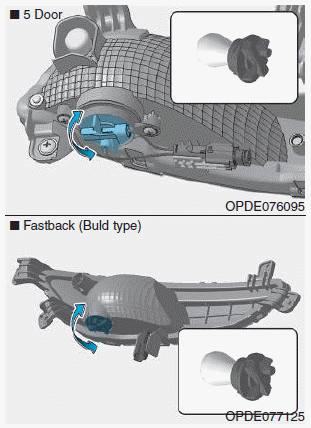

3. Remove the socket from the housing by turning the socket counterclockwise until the tabs on the socket align with the slots of the housing.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket into the housing by aligning the tabs on the socket with the slots in the housing. Push the socket into the housing and turn the socket clockwise.

Rear fog lamp (Fastback (N Line))

If the LED lamp does not operate, we recommend that you have the vehicle checked by a HYUNDAI authorised repairer.
