Hyundai i-30: Rear Seat / Rear Seat Assembly

Hyundai i30 (PD) 2018-2024 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Assembly

Components and components location
Component Location

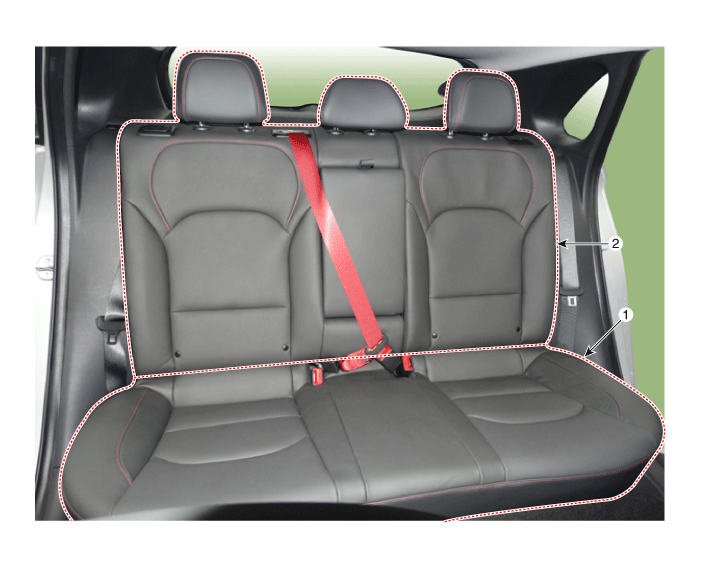

1. Rear seat cushion assembly
 2. Rear seat back assembly

Repair procedures
Replacement
[Rear seat cushion assembly]
1.

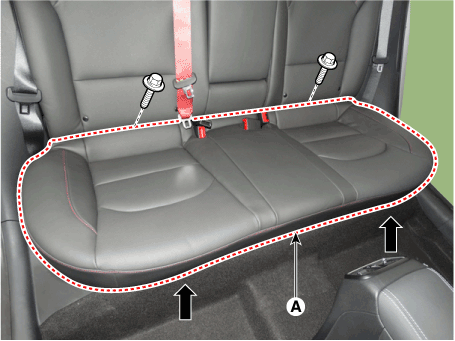

After loosening the mounting bolts, remove the rear seat cushion assembly (A).
Tightening torque :
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

2.
To install, reverse the removal procedure.
[Rear seat back assembly]
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

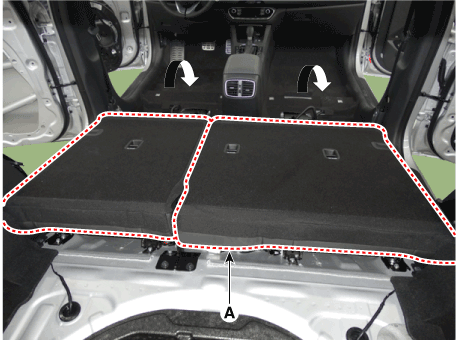

Pull up the rear seat back assembly (A) by pulling the stand-up lever.
3.

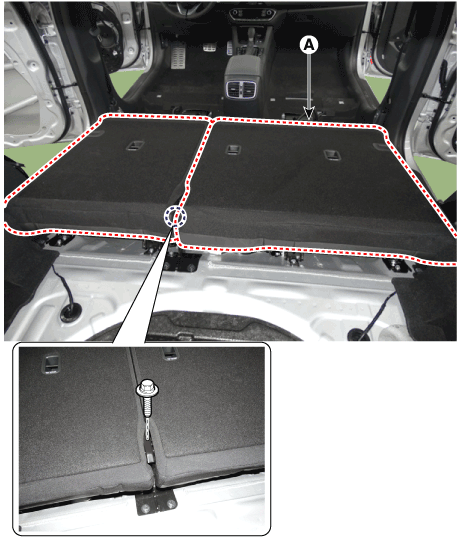

After loosening the mounting bolts, remove the rear seat assembly (A).
Tightening torque :
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

4.
To install, reverse removal procedure.
