Hyundai i-30: Rear Seat / Components and components location

Hyundai i30 (PD) 2018-2023 Service Manual / Body (Interior and Exterior) / Rear Seat / Components and components location

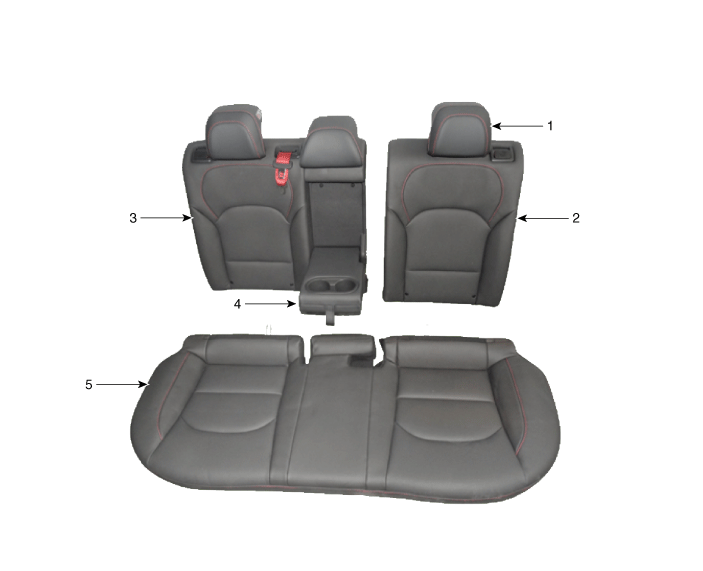

Components

1. Rear seat headrest
2. Rear seat back assembly [LH]
3. Rear seat back assembly [RH]
4. Rear back armreat
5. Rear seat cushion assembly
