Hyundai i-30: Panorama sunroof / Repair procedures

Hyundai i30 (PD) 2018-2023 Service Manual / Body (Interior and Exterior) / Panorama sunroof / Repair procedures

Adjustment
Inspect Glass Alignment
1.

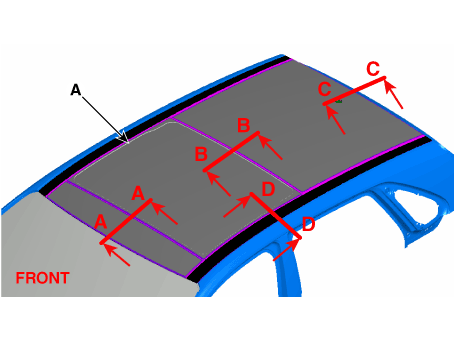

Perform considerable step alignment after replacing movable glass (A).

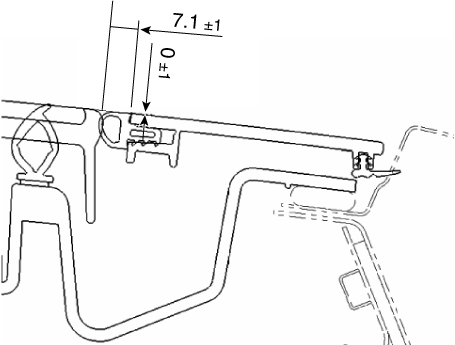

A - A

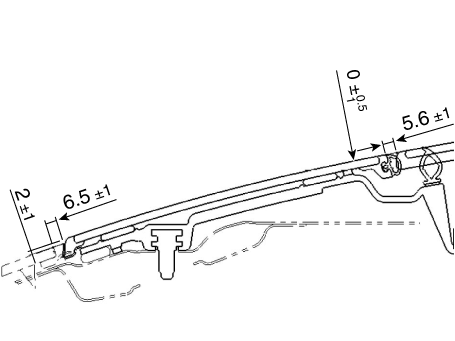

B- B

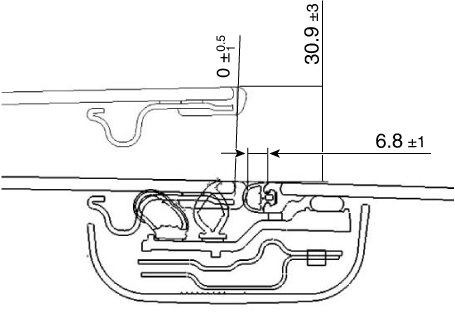

C -C

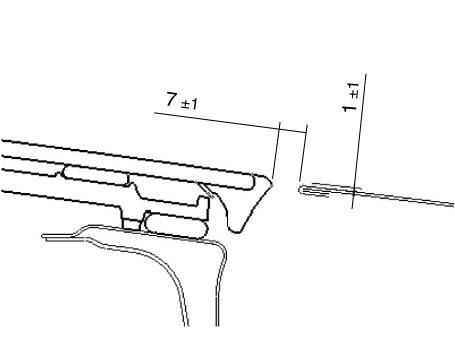

D - D


2.

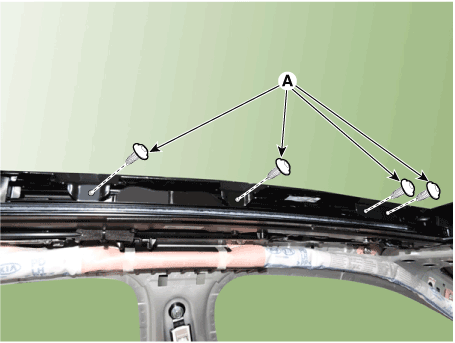

Perform hight adjustment releasing height adjust screw (A) a bit.

Be careful not to damage screws.

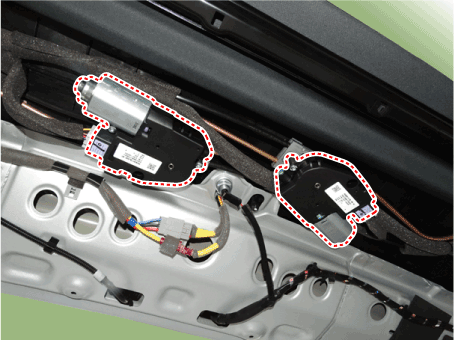

Initializing motor
1.
Perform rest procedure When Start [ON] or motor is running.
2.
Close enough panorama sunroof glass (about 5 sec) and blind (about 5 sec).
3.
Hand off from adjusting lever when glass and blind are closed enough.
4.
Press adjusting lever (10 sec) until glass and blind is moving a bit once again to sunroof close direction when glass and blind is closed enough.
5.
Hand off and press panorama sunroof adjusting lever to close direction then glass and blind is opened and closed [①Blind is open in slide mode ②Sunroof glass is opened and closed in slide mode after tilt ③Blind is closed] Initializing is done. Never hand off from adjusting lever until finished completely.
In case of motor initializing
1.
First operation after manufactured
2.
When rest value is initialized or damaged by power failure or discharging
3.
After operating emergency handle
4.
When replacing battery and fuse
5.
After replacing motor and reparing sunroof
Emergency operation
1.
Emergency operation of panorama sunroof should not be performed except in case of closing or opening panorama sunroof when motor is defected.
2.
Panorama sunroof should be closed or opened after removing roof trim using hexgonal wrench. Do not use excessive force.
3.
Perform initialization when necessary according the initialization procedure.

    Components and components location

    Components 1. Mechanism rail assembly 2. Center cover assembly 3. Roller blind assembly 4. Glass motor 5. Roller blind motor 6...

    Movable Glass

    Repair procedures Replacement 1. Open movable glass completely pressing panorama sunroof switch. 2...
